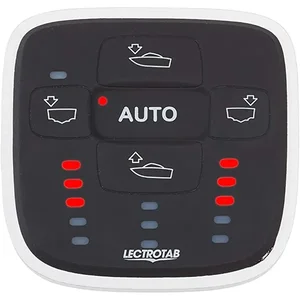

Lectrotab ALC-1 ALC - Advanced Automatic Leveling System

Advanced Automatic Leveling System (ALC)

The Advanced Leveling Control (ALC) optimally adjusts your trim tabs in response to wind shifts, changing water conditions, and passenger movements. Enjoy a level boat for a more comfortable ride and improved fuel efficiency.

This smart ALC corrects roll and pitch automatically, enhancing your overall boating experience.

Key Features:

• Microprocessor-controlled automatic leveling with LED position indicators
• Automatic management of both roll and pitch
• Built-in GPS, eliminating the need for a separate antenna
• Ensures adaptation to changing sea conditions
• Completely waterproof design (IP68)
• UV-resistant materials prevent deterioration from sunlight
• Disables corrections during turns for added stability
• Designed for boats over 20ft with planing and semi-displacement hulls
• Direct actuator connection to ALC-1 display panel (no extra power module needed)
• Automatic dimming and brightening of LED indicators based on light conditions
• Trim tabs retract automatically when the boat is off plane or using an optional key switch

Specifications:

• Display Color: Black
• Actuators Required per Tab Plate: One (1)
• Dimensions: 3.15" x 3.07" (80 x 77 mm)
• Mounting Hole Cutout: 2" (50 mm)
• Operating Voltage: 12 or 24 V

*Sold individually
