04-014 - Albin Pump Marine Albin Group Ballast Pump FIP F4 24V

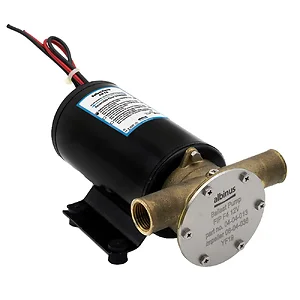

Ballast Pump FIP F4 24V

DC 24V F4-size ballast pump with a capacity of 55 L/min (14.25 GMP). This pump is used for ballast pumping of water between tanks.

Features:

• Pump body in brass, stainless steel shaft, premium ballast MC19 compound impeller, and seawater-resistant shaft seal
• Self-priming up to a 3m vertical lift
• Reversible flow direction
• 15A fuse reversing
• 7A normal duty
• Protected against ignition by surrounding flammable gases, ISO 8846
• Replacement premium ballast impeller in MC19 compound, PN 06-04-036

Specifications:

• Port Connections: 3/4 in. (19mm)
• Hose Connection: 1/2" threaded BSP
• Weight: 0,8 kg/1 Lb
• Dimensions (L x H x W) (mm/in): 180/7 x 90/3.5 x 120/4.7
• Type: Reversible flow direction by changing polarity
• Certification: CE marked 94/25/ECC, ISO8846 Small Craft, Electromagnetic compatibility 89/336/EEC, EN51014 1993/radio disturbance
