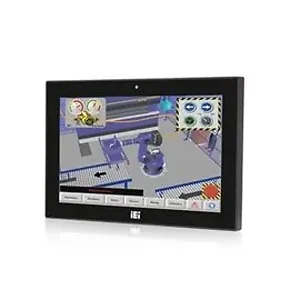

AFL3-12A-BT-J1/PC/2G-R11 - Iei Technology IEI System AFL3-12A-BT-J1/PC/2G-R11 12.1 inch Celeron J1900 2GB DDR3L Touch Re

System
CPU: Intel Celeron J1900 (quad core, 2.0 GHz) Communication
Wi-Fi: IEEE 802.11a/b/g/n/ac I/O Interface
RAM: One 204-pin 2 GB 1333MHz single-channel, 2GB DDR3L SDRAM preinstalled (system max. 8GB)
I/O Ports and Switches:
1 x RS-232 COM port (RJ-45 connector)
1 x RS-232/422/485 COM port (DB-9 connector)(RI/5V/12V)
2 x USB 3.0
2 x USB 2.0
2 x RJ-45 for GbE LAN
1 x Power switch
1 x Audio port (line-out) Power Requirement
9 to 30 VDC Environment
Operating Temperature: -20^oC to 50^oC
Storage Temperature: -20^oC to 60^oC Storage
mSATA
2.5 inch SATA 3Gb/s HDD bay LCD
Size: 21.1 inch
Resolution: 1024 x 768
Brightness(cd/m2): 500
Contrast Ratio: 700:1
LCD Color: 16.2M
Pixel Pitch (mm): 0.240 (H) x 0.240 (V)
Viewing Angle (H-V): 160^o / 160^o Touch
Touch Screen: 5-wire projected capacitive type
Touch Controller: PenMount DMC9000/ EETI EXC7200 Other Features
Camera: 2-megapixel with low light function
Microphone: digital microphone I/O Interface
1 x Audio(line-out)
1 x DC Input Jack(9-30V lockable power jack)
2 x LAN(RJ-45 for GbE LAN)
2 x USB 3.0
1 x RS-232(COM port (RJ-45 connector))
1 x RS-422/485(COM port (DB-9 connector)(RI/5V/12V))
1 x Reset Button
2 x USB 2.0
1 x AT/ATX switch
1 x Power Switch Item Dimension (L inchxW inchxH inch)
12 x 10 x 2

Weight
2.00lb

Warranty Information
2 Years
