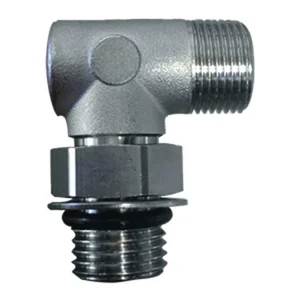

90° Adjustable Fitting for Back of UP Series Helms
Typical Application:
Fitting for the back of the UP series helms
Specifications:
The Uflex USA AF90 is a 90-degree adjustable fitting designed for integration with the back of Uflex UP Series helms. This component facilitates the connection between the helm and a hydraulic hose, addressing space constraints or specific routing requirements in marine steering systems. It is engineered for applications where a direct, straight connection is not feasible or optimal. The fitting features an ORB (O-Ring Boss) size #6 connection on the helm side, transitioning to a 3/8-inch compression fitting on the hose side. Specifically, the helm side utilizes a 9/16-18 UNF 2A thread, while the hose side employs a 9/16-24 UNEF 2A thread. This product is suitable for marine technicians and system integrators requiring a precise and reliable angular connection for Uflex UP Series hydraulic steering installations.
This fitting is primarily used for the back of Uflex UP Series helms, providing a 90-degree adjustable connection point for hydraulic hoses in marine steering systems.
The helm side of the fitting has a 9/16-18 UNF 2A thread. The hose side utilizes a 9/16-24 UNEF 2A thread.
The hose side of the fitting provides a 3/8-inch compression (COMP) fitting.
The product data specifies that this fitting is designed for the back of UP Series helms. Compatibility with other helm series is not indicated.
AF90 - Uflex Usa Uflex90° Adjustable Fitting f/Back of UP Series Helms ORB 6 to 3/8" COMP
