ACE-A160A-R11 - Iei Technology IEI ACE-A160A-R11 600W ATX Power | Aztek Computers
29+Years
SKU: G5106TEALI |  Mfg. Part: ACE-A160A-R11  | UPC: 885291003738  |
 1 Reviews  |     Share

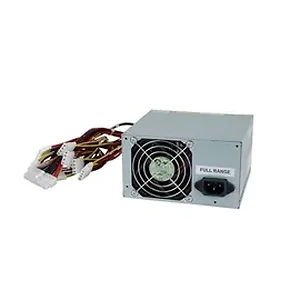

ACE-A160A-R11 - Iei Technology IEI ACE-A160A-R11 600W ATX Power Supply

Special Order
Ships in 1-2 weeks
Condition: New

$282.98  $382.02
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

The IEI ACE-A160A-R11 is a reliable 600W AC-DC power supply designed to meet the needs of modern ATX systems. With an 80 PLUS Bronze certification, it offers high efficiency and stability for your computer components, ensuring optimal performance.

This power supply features a range of connectors to support various components, including multiple SATA and HDD connections, making it suitable for both gaming and workstations.

Built to withstand challenging conditions, the ACE-A160A-R11 operates effectively in a wide range of temperatures, making it a robust choice for any setup.

Technical Specifications

  • Watt: 600W
  • Hold-up Time: 16 ms Min.
  • Efficiency: 85%
  • MTBF: 100,000 hours
  • Operating Temperature: -5°C to 50°C
  • Storage Temperature: -40°C to 80°C
  • Output Connectors: 1 x 20+4-pin ATX, 1 x 4-pin 12V CPU, 9 x HDD/CDROM, 2 x FDD, 2 x SATA, 1 x Extra +5V(P10)
  • Input Voltage: 90-265 VAC Full Range
  • Frequency: 47 Hz - 63 Hz
  • Input Current: 10A (RMS) at 115VAC, 5A (RMS) at 230VAC
  • Inrush Current: 40A max. for 115VAC, 80A max. for 230VAC
  • Output Voltage: +3.3V/25A, +5V/25A, +12V1/16A, +12V2/16A, +12V3/16A, +12V4/16A, -12V/0.5A, +5Vsb/4A
  • Over Voltage Protection: 5V: 5.7V-6.5V, 12V1-12V4: 13.3V-16.7V, 3.3V: 3.9V-4.5V
  • Short Circuit Protection: +3.3V, +5V, +12V1, +12V2, +12V3, +12V4, 24V or -12V shutdown and latch off
  • Item Dimensions: 6 x 6 x 4 inches
  • Weight: 1.00 lb
  • Warranty: 2 Years

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • IEI TECHNOLOGY
  • ACE-A160A-R11
  • 885291003738
  • New
  • 2.5 lbs
  • 0 X 0 X 0
  • Aug 02, 2026
  • Dec 30, 2025
Product Identifiers: Brand: Iei Technology • Part #: ACE-A160A-R11 • UPC: 885291003738 • Category: Monitor Supplies
