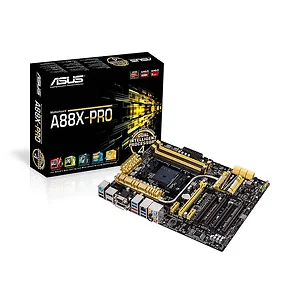

Asus A88X-PRO ATX FM2+ Motherboard with CrossFire Support

Specifications

• CPU: Socket FM2+
  • Supports AMD Athlon/A-Series Processors
  • Supports CPU up to 4 Cores
  • Supports AMD Turbo Core 3.0 Technology
• Chipset: AMD A88X (Bolton D4)
• Memory: 4x DDR3-2400(OC)/2250(OC)/2200(OC)/2133/1866/1600/1333 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 64GB
• Slots: 2x PCI-Express 3.0/2.0 x16 Slots (run at x16 or dual x8), 1x PCI-Express 2.0 x16 Slot (runs at x4), 2x PCI-Express 2.0 x1 Slots, 2x PCI Slots
• Multi-Graphics: Supports AMD 3-Way CrossFireX Technology
• SATA: 6x SATA3 Ports, Support RAID 0, 1, 5, 10 and JBOD
• Audio: Realtek ALC1150 8-Channel High Definition Audio CODEC
• Video: Integrated AMD Radeon HD 7000/8000 Series Graphics in A-Series APU w/ 2048MB Max Shared Memory
• LAN: Realtek 8111GR Gigabit Ethernet Controller
• Ports: 6x USB 3.0 Ports (4 rear, 2 at mid-board), 10x USB 2.0 Ports (2 rear, 8 at mid-board), 1x PS/2 Keyboard/Mouse Combo Port, 2x eSATA3 Ports, 1x VGA Port, 1x DVI Port, 1x HDMI Port, 1x DisplayPort, 1x Optical S/PDIF Out, 1x RJ45 LAN Port, Audio I/O Jacks
• Power Connector: 1x 24pin EATX Power Connector, 1x 8pin ATX 12V Power Connector
• Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 24.4 cm
