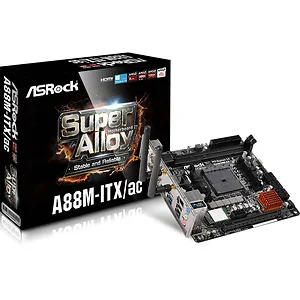

Asrock A88M-ITX/AC Mini-ITX Motherboard with WiFi

Specifications

• CPU: Socket FM2+
  • Supports Socket FM2+ 95W / FM2 100W Processors
  • Digi Power Phase design
• Chipset: AMD A88X (Bolton-D4)
• Memory: 2x DDR3-2400+(OC) / 2133 / 1866 / 1600 / 1333 / 1066 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 32GB
• Slots: 1x PCI-Express 3.0 x16 Slot
• Storage:
  • SATA: 6x SATA3 Ports, Support RAID 0, 1, 5, 10
  • M.2: 1x M.2 Port, Supports type 2230 WiFi/BT module
• Audio: Realtek ALC887 7.1-Channel High Definition Audio CODEC
• Video: Integrated AMD Radeon R7/R5 Series Graphics in A-series APU with 2GB Max Shared Memory
• LAN: Realtek RTL8111GR PCI-Express x1 Gigabit Ethernet Controller; 802.11a/b/g/n/ac (2.4/5GHz) Wireless LAN; Bluetooth 4.0 / 3.0 + High speed class II
• Ports: 4x USB 3.0 Ports (2 rear, 2 via header), 8x USB 2.0 Ports (4 rear, 4 via headers), 1x PS/2 Keyboard/Mouse Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x RJ45 LAN Port, Audio I/O Jacks
• Power Connector: 1x 24pin ATX Power Connector, 1x 8pin 12V Power Connector
• Form Factor: Mini-ITX
