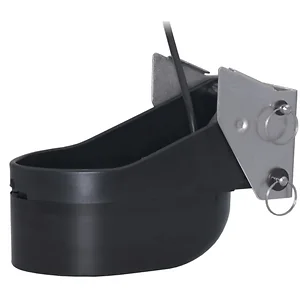

A80804 - Raymarine TM185HW 1Kw Depth and Temperature CHIRP Transom Mount

Raymarine TM185HW 1Kw Depth and Temperature CHIRP Transom Mount

• Depth and fast-response water-temperature sensing
• 1 kW of power
• High frequency: 150 to 250 kHz - Constant 25° beamwidth - Maximum depth of 152 m (500')
• 100 kHz of total bandwidth from one transducer
• Covers popular fishing frequency of 200 kHz plus everything else in the bandwidth
• Stainless steel bracket for installation on outboard or inboard/outboard powered boats
• Recommended for use on planing and displacement hulls
• SEALCAST™, seamless, urethane housing for long life in the water
• Also available as thru-hull Tilted™ Element (B175HW)(SS175HW), thru-hull with fairing (B285HW), and in-hull (M285HW) mounts
• Patented Xducer ID® technology

Get more coverage under your boat with Airmar’s unique, wide-beam, high-frequency, Chirp-ready TM185HW. The high-frequency band operates across a range of 150 to 250 kHz and has a fixed 25° beam. The high-frequency band yields superior shallow-water performance, bottom detail, and fish-target separation. The constantly wide beam provides twice the coverage for detecting fish in the upper-water column and clear fish arches on the display compared to most high-frequency, narrow-beam transducers. The high wide is the ideal choice for both inshore and pelagic fishing, where resolution and maximum coverage are essential down to 152 m (500').

The Raymarine TM185HW 1Kw Depth and Temperature CHIRP Transom Mount transducer, part number A80804, is designed for marine applications requiring precise depth and water temperature sensing. This 1 kW unit operates on a high-frequency band from 150 to 250 kHz, providing a constant 25� beamwidth. It is suitable for use on both planing and displacement hulls, with a recommended maximum vessel length of up to 10 meters (33 feet).

This transducer is intended for IT and marine professionals managing systems on leisure/yachting vessels or fishing boats where detailed shallow-water performance, bottom detail, and fish-target separation are critical. Its wide beam offers enhanced coverage for detecting targets in the upper-water column down to a maximum depth of 152 meters (500 feet). The unit features a SEALCAST� urethane housing and a stainless steel bracket for transom installation on outboard or inboard/outboard powered boats, ensuring durability in marine environments.
