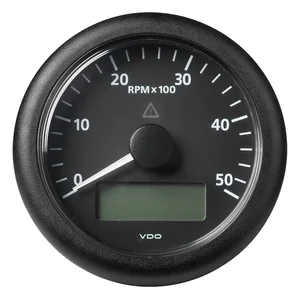

Veratron A2C59512392 ViewLine 85MM Tachometer - 0-5000 RPM - Black Dial

ViewLine 85MM Tachometer with Multi-Function Display

This 3-3/8" (85MM) ViewLine Tachometer features a multi-function display capable of measuring RPM from 0 to 5000. It is designed for connection to conventional marine engines without a data bus.

One integrated LED warning light enhances functionality, providing immediate alerts during operations.

Specifications:

• Compatible with various sensor inputs (W, Ind, Hall, Generator)
• Optional output for acoustic alerts
• LCD size: 37 mm x 11 mm
• Operating voltage: 8 – 32 V
• Accuracy: +/- 2.5% of full scale reading
• Current consumption: < 175 mA with LED warning light
• Programmable number of pulses via dip switch or PC software
• Features an anti-fog double lens for clarity
• Protection rating: Front IP67, Rear IP52
• Installation diameter: 85 mm
• Installation depth: 50 mm
• Operating temperature range: -20 °C to +70 °C
• Includes reverse polarity protection

Please note: This product may not be returned to the original point of purchase. For any issues or concerns, please contact the manufacturer directly.
