Veratron A2C59512390 ViewLine Tachometer - 3/8" Multi-Function Display

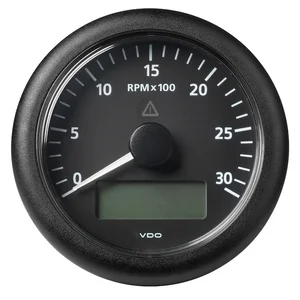

ViewLine Tachometer - 3-3/8" (85MM) with Multi-Function Display

Designed for conventional marine engines, the ViewLine Tachometer offers a range of features including an optional operating hours counter and an integrated LED warning light. This practical instrument simplifies monitoring engine RPM from 0 to 3000, providing essential information at a glance.

Key Features:

• Compatible with various sensor inputs (W, Ind, Hall, Generator)
• Optional acoustic alert output available
• LCD dimensions: 37 mm x 11 mm
• Operating voltage range: 8 – 32 V
• Accuracy: ± 2.5% of full scale reading
• Low current consumption: < 175 mA with LED warning light
• Programmable number of pulses via dip switch or PC
• Anti-fog double lens for clear visibility
• Front protection rating: IP67, rear: IP52
• Installation diameter: 85 mm, installation depth: 50 mm
• Operating temperature range: -20 °C to +70 °C
• Reverse polarity protection included
