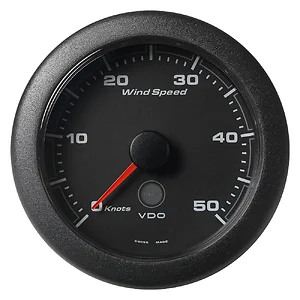

Veratron A2C1957420001 85 MM (3/8") OceanLink Apparent/True Wind Speed Gauge

85 MM (3-3/8") OceanLink Apparent/True Wind Speed Gauge

The OceanLink Series focuses on the needs of the modern sports and leisure boat markets.

 It provides a modular instrumentation concept for electronic navigation and engine monitoring with NMEA 2000®, J1939 and analog connectivity. The new product line offers a wide range of functions as well as great flexibility in installation and design.

The OceanLink™ series provides three different master instruments as centerpieces of the system: a 4.3" TFT Display, a 7" TFT touch Display and as master instruments 85 mm round gauges.

The OceanLink™ 85mm Master gauge and the TFT Displays show various available data (e.g. engine data, depth, course over ground and speed over ground), and send it to all NMEA 2000® devices and to up to 16 additional satellite instruments. All instruments come in a new and stylish design, with perfect to read modern dials.

Benefits of using OceanLink -

• Easy and effective use.
• Perfectly readable engine monitoring thanks to increased performance presentation.
• The EasyLink data connection and the plug & play solution provide a flexible installation of panel, front and flush mounted instruments.
• Decades of experience guarantee a fully reliable, modern navigation and engine monitoring system with NMEA 2000®.
• A solid housing design completely sealed against dust and highly water resistant (IPX7 front and rear).
• Sunlight readable touch screen IPS TFT Display.
• Master instruments with NMEA 2000® gateway functionality forwarding data, e.g. engine data, to NMEA compatible devices.

OceanLink Specifications:

• 1x NMEA 2000® input •
• 1x J1939 • 1x Frequency input •
• 2x Analog inputs
•  1x Alarm output 500 mA
• Reverse polarity protection
•  Anti-fog double layer plastic lens
• Protection rating IPX7
• Operating temperature range -20°C to +70°C

In the Box:

• Gauge
• Bezel
• Rubber Seal
• Spinlock
• Connection Cable
• Installation Instructions
• Safety Instructions

*Sold as an Individual
