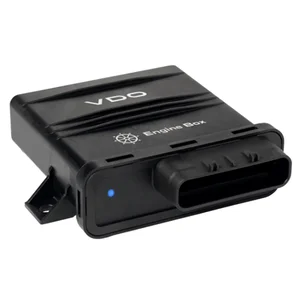

Veratron A2C1824820001 EngineBox - Multi-Engine Gateway

EngineBox - Multi-Engine Gateway

The EngineBox enhances the NavBox capabilities for multi-engine setups and can also function independently when navigation data is not essential. Featuring both NMEA 2000® and J1939 CAN ports, it is versatile enough to support older, all-analog engines through its specialized analog input ports designed for RPM, resistive, and capacitive sensors.

Configuration is user-friendly with a free intuitive PC tool that simplifies input programming. Its compliance with ISO 8846:1990 ensures safe installation within engine compartments.

Key Features:

• Acts as an analog to NMEA 2000® gateway
• Functions as a J1939 to NMEA 2000® gateway
• Available in single engine and dual engine models
• Compact and durable design
• Status indicator LED
• Operating temperature range of -40°C to +85°C

Specification Overview:

• 1x J1939 (or 2x J1939 for Dual Engine Model)
• 1x M12 5-pin NMEA 2000® connector
• 1x Input for RPM (0–4 kHz, 2 inputs for Dual Engine Model)
• 4x Inputs for resistive sensors (0–400 Ohm, up to 8 inputs with Dual Engine Model)
• 2x Inputs for 4–20 mA signals
• 1x Input for 0–5 V (2 inputs for Dual Engine Model)

Package Includes:

• Engine Cable
• Cable Harness
• Safety Instructions

*Sold individually
