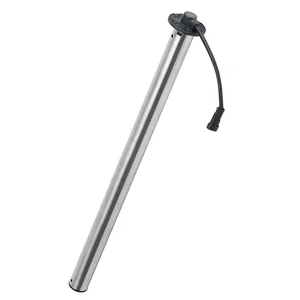

Veratron A2C1750420001 450mm Deep-Pipe Level Sender - 90 to 4 OHM

Veratron 450mm Deep-Pipe Level Sender - 90 to 4 OHM

The Deep-Pipe Level Sender is designed for accurate measurements in fuel tanks, featuring a robust 38 mm diameter stainless steel tube. Inside, a float measures liquid levels, while strategically placed holes mitigate sloshing, ensuring stable float positioning even in rough conditions.

This sensor is essential for various applications, compatible with different fuel types such as Oil, Petroleum, Diesel, and Gasoline, as well as water. Length options range from 150 mm to 1200 mm, with installation requiring at least 4 mm clearance from the tank base.

Technical Specifications:

• TE Superseal Connector 2-Pole IP67
• Operating Temperature: -25°C to 65°C (-13°F to 149°F)
• Operating Voltage: 6 to 24 VDC
• Compensation chamber
• 5-Hole SAE Flange 54mm PA66 GF30
• Wiring harness length: 200 mm
• Signal range: 90–4 OHM
• IP67 protection rating
• Analog communication

Included in the Box:

• Deep-Pipe Level Sensor
• Installation Kit
• Safety Instructions
• Installation Instructions

*Sold as an Individual

Note: This product is non-returnable. Please contact the manufacturer directly for any issues or concerns.
