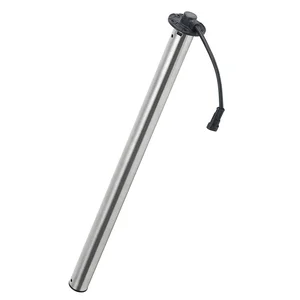

Veratron A2C1750280001 Stainless Steel Level Sensor - 340mm - 90 to 4 OHM

Stainless Steel Level Sensor - 340mm - 90-4 OHM

The Stainless Steel Level Sensor is designed for reliable measurement in fuel tanks. It features a 38mm diameter vertical tube that houses a float, which accurately assesses the liquid level. Its specialized design includes small holes at the top and bottom of the tube to minimize fuel sloshing, ensuring stable float positioning in various sea conditions.

This sensor is available in lengths ranging from 150mm to 1200mm—be sure to select a length that maintains a clearance of at least 4mm from the base of the fuel tank upon installation.

Key Features:

• Durable Tubular Sensor made from Stainless Steel
• Compatible with Fuel (Oil, Petroleum, Diesel, Gasoline) and Water
• Length: 340mm

Technical Specifications:

• TE Superseal Connector 2-Pole, IP67 rated
• Operating Temperature: -25°C to 65°C (-13°F to 149°F)
• Operating Voltage: 6 to 24 VDC
• Includes a compensation chamber
• Flange: 5-Hole SAE Flange, 54mm PA66 GF30
• Wiring harness length: 200mm
• Signal ranges: 90-4 OHM
• IP67 protection rating
• Communication: Analog

Included in the Box:

• Stainless Steel Level Sensor
• Installation Kit
• Safety Instructions
• Installation Instructions

*Sold individually.
