A2C1746170001 - Veratron 240mm Deep-Pipe Level Sensor - 240-33 OHM

240mm Deep-Pipe Level Sensor - 240 to 33 OHM

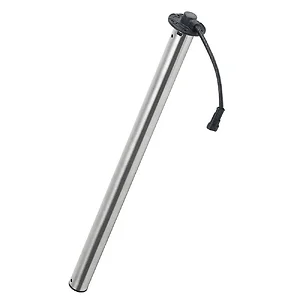

The Deep-Pipe Level Sensor is designed for reliable measurement in fuel tanks. Its 38 mm diameter vertical tube houses a float that accurately detects liquid levels. With small baffles located at both the top and bottom of the tube, the float's position is stabilized even in turbulent conditions.

This sensor is available in multiple lengths ranging from 150 mm to 1200 mm. It is recommended to select a length that is at least 4 mm above the tank's base for optimal performance.

Key Features:

• Constructed from durable stainless steel
• Suitable for various fluids including fuel (oil, petroleum, diesel, gasoline) and water
• Length: 240 mm

Technical Specifications:

• TE Superseal Connector 2-Pole IP67 rated
• Operating Temperature: -25�C to 65�C (-13�F to 149�F)
• Operating Voltage: 6 to 24 VDC
• Included compensation chamber
• 5-Hole SAE Flange: 54mm PA66 GF30
• Wiring harness length: 200 mm
• Signal range: 240 to 33 OHM
• IP67 protection rating
• Analog communication

In the Box:

• Deep-Pipe Level Sensor
• Installation Kit
• Safety Instructions
• Installation Instructions

*Sold individually

Note: This product cannot be returned to the original point of purchase. For any issues or concerns, please contact the manufacturer directly.

The Veratron 240mm Deep-Pipe Level Sensor, part number A2C1746170001, is designed for reliable liquid level measurement in fuel and water tanks. This sensor features a 38mm diameter vertical tube with an internal float, stabilized by small baffles, to accurately detect fluid levels even in turbulent conditions. Constructed from durable stainless steel, it is suitable for various fluids including oil, petroleum, diesel, gasoline, and water.

Key specifications include a 240mm length, a 240 to 33 OHM analog signal range, and a TE Superseal 2-Pole IP67 rated connector. It operates within a 6 to 24 VDC voltage range and an operating temperature of -25�C to 65�C. The sensor is equipped with a 5-Hole SAE Flange for mounting and includes a compensation chamber. This product is intended for IT and industrial buyers requiring a robust, precise level sensing solution for tank monitoring applications, providing essential data for inventory management or operational control. An installation kit and a 200mm wiring harness are included.
