Veratron A2C1744420001 410mm Deep-Pipe Level Sender - 0 to 180 OHM

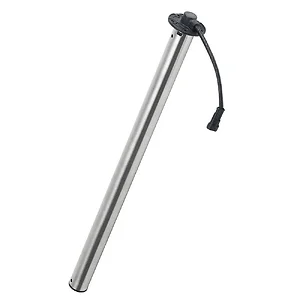

Veratron 410mm Deep-Pipe Level Sender - 0 to 180 OHM

The Deep-Pipe Level Sensor is designed specifically for use in fuel tanks, featuring a robust architecture that ensures accurate measurement of liquid levels. Its vertical tube, with a diameter of 38 mm, houses a float mechanism that precisely gauges the liquid level. Small openings at both the top and bottom of the tube act as baffles to mitigate fuel sloshing, thus maintaining stable float positioning, even in dynamic sea conditions.

This sensor is available in various lengths ranging from 150 mm to 1200 mm, ensuring a suitable fit for different tank depths with a minimum installation clearance of 4 mm from the bottom of the tank.

Key Features:

• Tubular Sensor constructed from Stainless Steel
• Compatible with a variety of liquids including Fuel (Oil - Petroleum - Diesel - Gasoline) and Water
• Length: 410 mm

Technical Specifications:

• TE Superseal Connector 2-Pole with IP67 rating
• Operating Temperature: -25°C to 65°C (-13°F to 149°F)
• Operating Voltage: 6 to 24 VDC
• Includes a compensation chamber for enhanced accuracy
• Features a 5-Hole SAE Flange (54mm PA66 GF30)
• Wiring harness length: 200 mm
• Signal range: 0 to 180 OHM
• IP67 protection rating for durability
• Communication method: Analog

Included in the Package:

• Deep-Pipe Level Sensor
• Installation Kit
• Safety Instructions
• Installation Instructions

*Sold as an Individual
