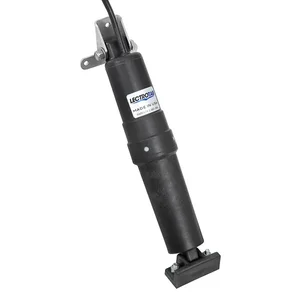

A-BK-26 - Lectrotab Heavy Duty Trim Tab Actuator - 6' Cable for Boats

Heavy Duty Trim Tab Actuator - 6' Cable for Boats

The Lectrotab heavy-duty trim tab actuator is designed to meet the demands of high-speed boats operating in challenging conditions. Featuring a 12 gauge stainless steel upper bracket and a reinforced upper mounting boss, this actuator ensures durability and reliable performance.

This non-hydraulic, maintenance-free actuator provides outstanding accuracy in tab positioning and exceptional lift force. Its completely corrosion-free design and self-contained unit make installation effortless without internal components required within the boat. Unlike hydraulic trim tabs, it eliminates concerns about oil leaks. This actuator comes with either a standard or low profile transom mounting bracket.

Compatible With:

• Various Boat Models

Features:

• Durable stainless steel upper mounting bracket
• Reinforced mounting boss for enhanced stability
• Safe upper ram seal placement to prevent damage from barnacles
• Incorporates an internal pressure equalization system
• Built-in brake system for secure tab position during movement
• Designed for quiet operation
• Load tested for up to 1000 lbs of force
• Non-corrosive, weather-resistant structure

Technical Specifications:

• DC Voltage: 12 V
• Stroke Length: 2.25 inches (57 mm)
• Cable Length: 6 feet (1.8 M)
• Vertical Height: 11.875 inches (302 mm)
• Connectors: Deutsch style

*Sold as an Individual Item

The Lectrotab Heavy Duty Trim Tab Actuator, part number A-BK-26, is an electronics component designed for marine applications. This actuator is suitable for high-speed boats operating in demanding conditions, providing precise trim tab positioning and significant lift force. It features a 12-gauge stainless steel upper bracket and a reinforced upper mounting boss for durability. The unit is non-hydraulic and maintenance-free, eliminating concerns about oil leaks. Its corrosion-free design and self-contained nature simplify installation, as no internal boat components are required. Key features include a built-in brake system for secure tab positioning, an internal pressure equalization system, and a safe upper ram seal placement to prevent barnacle damage. The actuator operates on 12V DC, offers a 2.25-inch stroke length, and includes a 6-foot cable with Deutsch-style connectors. It is load tested for up to 1000 lbs of force and is designed for quiet operation.
