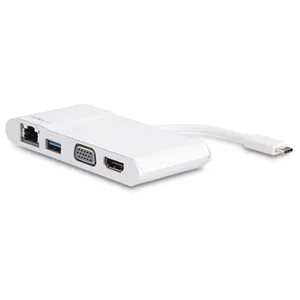

9W3122 - Startech USB-C Multiport Adapter 4K HDMI VGA GbE USB 3 - White & Silver - for Notebook - USB Type C - 1 x USB P

Hardware
4K Support
Yes
Bus Type
USB-C
Chipset ID
Cypress - CYPD2122 (CC Logic)
Cypress - CYUSB3314 (USB 3.0)
STMicroelectronics - STDP2650 (HDMI)
Chrontel - CH7517 (VGA)
ASIX - AX88179 (LAN)
Displays Supported
1
Fast-Charge Port(s)
No
Industry Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0 and 1.1
Performance
Audio Specifications
HDMI output - 7.1 surround sound
Auto MDIX
Yes
Compatible Networks
10/100/1000 Mbps
Full Duplex Support
Yes
Maximum Analog Resolutions
2048 x 1280p - 30Hz (VGA)
Maximum Data Transfer Rate
5 Gbps (USB 3.0)
2 Gbps (Ethernet Full-Duplex)
Maximum Digital Resolutions
3840 x 2160p - 30Hz (HDMI)
Type and Rate
USB 3.0 - 5 Gbit/s
UASP Support
Yes
Connector(s)
Connector Type(s)
1 - USB Type-C (24 pin) USB 3.0 Male
1 - HDMI (19 pin) Female
1 - VGA (15 pin, High Density D-Sub) Female
1 - RJ-45 Female
1 - USB Type-A (9 pin) USB 3.0 Female
Software
OS Compatibility
Windows 8, 8.1, 10
Mac OS 10.10 to 10.12
Chrome OS
Special Notes / Requirements
Note
Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your laptop USB-C port supports DP alt mode.
Only one video output port can be used at the same time (HDMI or VGA). If two displays are connected, the HDMI port takes priority.
A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K).
USB 3.0 is also known as USB 3.1 Gen 1 this connectivity standard offers speeds up to 5Gbps.
System and Cable Requirements
Host laptop with an available USB-C port (to ensure full functionality, the laptops USB-C port must support DP alt mode).
Power
Power Source
USB-Powered
Environmental
Humidity
5-95% RH (Non-condensing)
Operating Temperature
5^o to 35^oC (41^o to 95^oF)
Storage Temperature
-40^o to 70^oC (-40^o to 158^oF)
Physical Characteristics
Cable Length
4.1 in (105 mm)
Color
White Silver
Enclosure Type
Plastic
Whats in the Box
Included in Package
1 - USB-C multiport adapter for laptops
1 - instruction manual
Item Dimension (L inchxW inchxH inch)
8 x 5 x 2

Weight
1.00lb

Warranty Information
3 Year Warranty
