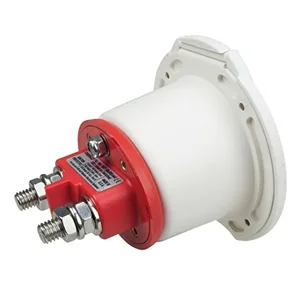

9621DPC - Perko Single Battery Disconnect Switch - Cup Mount

Single Battery Disconnect Switch - Cup Mount

The Perko Single Battery Disconnect Switch permits the battery to be shut off from the electrical system when the vessel is not in use. They can also serve as an emergency main disconnect switch in the event of an electrical problem.

The Single Battery Disconnect Switch is Ignition Protected.

Materials & Finish

• Red polycarbonate polymer body
• Black polymer actuator key
• Nickel plated terminals

Features

• Small compact size
• Unique oval shape mounts in a round hole
• Removable actuator key adds additional security

Technical Information

• Rating: 140 Amps Continuous, 200 Amps 5 Min. Intermittent, 250 Amps 30 Second Start
• Cup Mount Installation Hole Size: 3"
• For use with alternators and generators 6-50 V.D.C. Marine Electrical Systems
• Ignition Protected
• Face Dimensions: 3" x 2-1/2

The Perko Single Battery Disconnect Switch, part number 9621DPC, is designed to provide a reliable method for isolating a battery from an electrical system. This device allows for the complete shutdown of power when a system is not in use, which can help prevent battery drain and enhance safety. It also functions as an emergency main disconnect, enabling rapid power cutoff in the event of an electrical issue. Constructed with a red polycarbonate polymer body, black polymer actuator key, and nickel-plated terminals, the switch is ignition protected. Its compact, oval design is suitable for cup mount installations requiring a 3-inch hole. This switch is rated for 140 Amps continuous operation and supports marine electrical systems with alternators and generators ranging from 6 to 50 V.D.C.
