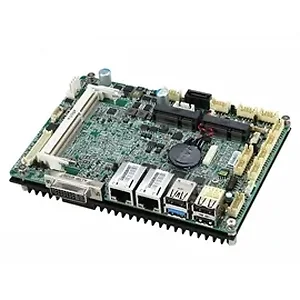

Msi 919-98G6-002 Motherboard 919-98G6-002 BayTrail Celeron N2930 4Core DDR3L Intel HD 3.5 inch Fanless SBC Retail

CPU
Intel Celeron Processor J1900

Frequency
2 GHz (Quad Core, for J1900)

L2 Cache
2 MB

CPU Type
BGA

Chipset
N/A

BIOS
AMI

Memory
Single-channel DDR3L 1333 MHz

Max. Capacity
Up to 8GB

Socket
1 x 204-pin SO-DIMM

Display
Intel HD Graphics

Graphic Memory
Shared system memory up to 1.7 GB SDRAM

LVDS
1 x LVDS 18/24-bit dual channel

eDP
N/A

VGA
N/A

DVI
1 (DVI-I)

HDMI
N/A

DisplayPort
N/A

Multiple Display
2 independent displays

Display Interface
LVDS up to 1920 x 1200
DV-I up to 1920 x 1200

Ethernet
2 x Intel I210-AT GbE LAN

Audio
Realtek ALC887-VD2-CG HD Audio Codec

Super I/O
Fintek F81866AD-I

Watchdog Timer
255-level Watchdog Timer

Smart Fan
Yes

TPM
N/A

USB
7 x USB 2.0 (4 x internal, 3 x rear)
1 x USB 3.0 (1 x rear)

Serial
6 x COM (internal)
COM1: RS-232/422/485, 0V/5V/12V
COM2 to 6: RS-232, 0V/5V/12V

Parallel
N/A

PS/2
1 (wafer connector)

GPIO
8-bits (4 x GPI, 4 x GPO), 5V

Expansion Slot
PCIe x16 : N/A
PCIe x4 : N/A
PCIe x1 : N/A
PCI : N/A
Mini-PCIe : 2 x Full-size (one with mSATA)

Storage
SATA : 1 x SATA 2.0
IDE : N/A
eSATA : N/A
CFast : N/A
mSATA : 1
CompactFlash : N/A

Power Supply
DC : DC-in 12V/19V/24V
ATX : N/A

Operating Temperature
-10 to 60^oC

Operating Humidity
10 to 90%, non-condensing

Storage Temperature
-20 to 80^oC

Storage Humidity
10 to 90 percent, non-condensing

Form Factor
146mm x 102mm (3.5 inch)

Item Dimension (L inchxW inchxH inch)
15 x 12 x 10

Weight
13.45lb

Warranty Information
N/A
