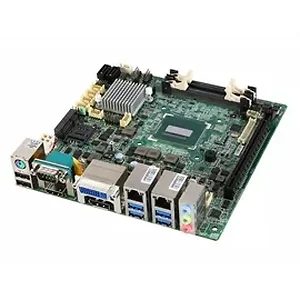

Msi 919-98G5-05S Motherboard 919-98G5-06S MS-98G5 Core i7-4700EQ BGA1364 QM87 DDR3L SATA USB Mini-ITX Retail

CPU
4th Gen Intel Core^TM i7/i5/i3/Celeron Mobile Processor

Frequency
Depends on CPU

L2 Cache
Depends on CPU

CPU Type
BGA

Chipset
Intel QM87 Express

BIOS
AMI

Memory
Dual-channel DDR3L 1333/1600 MHz SDRAM

Max. Capacity
Up to 16GB

Socket
2 x 204-pin SO-DIMMs

Display
Intel HD Graphics

Graphic Memory
Shared system memory up to 1.7 GB SDRAM

LVDS
Dual channel 24-bit

eDP
N/A

VGA
N/A

DVI
1 (DVI-I)

HDMI
1

DisplayPort
1

Multiple Display
3 independent displays

Display Interface
LVDS up to 1920 x 1200
DVI up to 1920 x 1200
DP up to 3840 x 2160
HDMI up to 4096 x 2304

Ethernet
1 x Intel I217-LM LAN PHY
1 x Intel I210 LAN

Audio
Realtek ALC887 HD Audio Codec

Super I/O
Fintek F81866AD-I

Watchdog Timer
256-level Watchdog Timer

Smart Fan
Yes

TPM
Pin header

USB
4 x USB 3.0 (rear)
8 x USB 2.0 (6 x internal, 2 x rear)

Serial
5 x COM (COM1: rear, COM2 to 5: internal)
COM1: RS-232/422/485, 0V/5V/12V
COM2 to 5: RS-232

PS/2
1

GPIO
8-bits (4 x GPI, 4 x GPO), 5V

Expansion Slot
PCIe x16 : 1 (up to 75W, w/ riser card to extend to x8+x8 or x8+x4+x4)
PCIe x4 : N/A
PCIe x1 : N/A
PCI : N/A
Mini-PCIe : 1x Full size, mSATA (with SIM Holder), 1x Half size

Storage
SATA : 2 x SATA 3.0
IDE : N/A
eSATA : N/A
CFast : N/A
mSATA : 1
CompactFlash : N/A

Power Supply
DC : DC-in 12V/19V
ATX : N/A

Operating Temperature
0 to 60^oC

Operating Humidity
10 to 90 percent, non-condensing

Storage Temperature
-20 to 80^oC

Storage Humidity
10 to 90 percent, non-condensing

Storage Humidity
10 to 90 percent, non-condensing

Form Factor
170mm x 170mm (Mini-ITX)

Item Dimension (L inchxW inchxH inch)
20 x 17 x 17

Weight
35.00lb

Warranty Information
N/A
