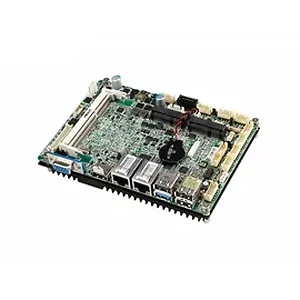

Msi 919-98F6-003 Motherboard 919-98F6-003 MS-98F6 Bay Trail Celeron J1900 DDR3L SATA PCI Express 3.5 inch Fanless

CPU
Intel Celeron Processor N2930

Frequency
1.83 GHz (Quad Core, for N2930)

L2 Cache
2MB

CPU Type
BGA

Chipset
N/A

BIOS
AMI

Memory
Single-channel DDR3L 1333 MHz

Max. Capacity
Up to 8GB

Socket
1 x 204-pin SO-DIMM

Display
Intel HD Graphics

Graphic Memory
Shared system memory up to 1.7 GB SDRAM

LVDS
1 x LVDS 18/24-bit dual channel

eDP
N/A

VGA
1

DVI
N/A

HDMI
1

DisplayPort
N/A

Multiple Display
2 independent displays

Display Interface
VGA up to 2560 x1600
HDMI up to 1920 X1080
LVDS up to 1920 x 1200

Ethernet
2 x Intel I210-AT GbE LAN

Audio
Realtek ALC887-VD2-CG HD Audio Codec

Super I/O
Fintek F81866AD-I

Watchdog Timer
255-level Watchdog Timer

Smart Fan
N/A

TPM
N/A

USB
7 x USB 2.0 (4 x internal, 3 x rear)
1 x USB 3.0 (1 x rear)

Serial
6 x COM (internal)
COM1: RS-232/422/485, 0V/5V/12V
COM2 to 6: RS-232, 0V/5V/12V

Parallel
N/A

PS/2
1 (wafer connector)

GPIO
8-bits (4 x GPI, 4 x GPO), 5V

Expansion Slot
PCIe x 16 : N/A
PCIe x 4 : N/A
PCIe x 1: N/A
PCI : N/A
Mni-PCIe: 2 x Full-size (one with mSATA)

Storage
SATA : 1 x SATA 2.0
IDE : N/A
eSATA : N/A
CFast : N/A
mSATA : 1
CompactFlash : N/A

Power Supply
DC : DC-in 12V/19V/24V
ATX : N/A

Power Supply
DC : DC-in 12V/19V/24V
ATX : N/A

Operating Temperature
-10 to 60^oC

Storage Temperature
-20 to 80^oC

Operating Humidity
10 to 90 percent, non-condensing

Storage Humidity
10 to 90 percent, non-condensing

Form Factor
146mm x 102mm (3.5 inch)

Item Dimension (L inchxW inchxH inch)
15 x 12 x 10

Weight
13.45lb

Warranty Information
N/A
