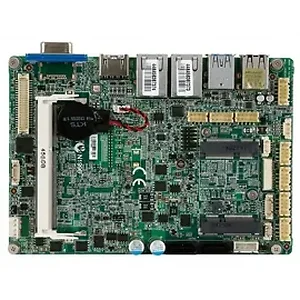

Msi 919-98F3-08S Motherboard 919-98F3-08S MS-98F3 Broadwell ULT Core i3-5010U DDR3L SATA PCI Express 3.5 inch Fan

CPU
Intel HSW U-Series Core i5 Mobile Processors

Frequency
Depends on CPU

L2 Cache
Depends on CPU

CPU Type
BGA

Chipset
N/A

BIOS
AMI 128Mbit SPI

Memory
Single-channel DDR3L 1333/1600 MHz

Max. Capacity
Up to 8GB

Socket
1 x 204-pin SO-DIMMs

Display
Intel HD Graphics

Graphic Memory
Shared system memory up to 1.7 GB SDRAM

LVDS
Dual-channel 24-bit (add chrontel 7511B chipset)

eDP
N/A

VGA
1

DVI
N/A

HDMI
1

DisplayPort
1 (optional)

Multiple Display
3 Independent Displays

Display Interface
LVDS up to 1920 x 1200
VGA up to 1920 x 1200
HDMI up to 1920 x 1080
DP up to 3200 x 2000

Ethernet
1 x Intel I218-LM GbE LAN PHY
1 x Intel I210-AT GbE LAN

Audio
Realtek ALC887 HD Audio Codec

Super I/O
Fintek F81866AD-I

Watchdog Timer
256-level Watchdog Timer

Watchdog Timer
256-level Watchdog Timer

TPM
N/A

USB
4 x USB 2.0 (2 x rear, 2 x internal)
2 x USB 3.0 (2 x rear)

Serial
4 x COM (internal)
COM1: RS-232/422/485, 0V/5V/12V
COM2 to 4: RS-232, 0V/5V/12V

Parallel
N/A

PS/2
1 (pin header)

GPIO
8-bits (4 x GPI, 4 x GPO), 5V

Expansion Slot
PCIe x 16 : N/A
PCIe x 4 : N/A
PCIe x 1 : N/A
PCI : N/A
Mni-PCIe : 2 x Full-size (one with SIM holder)

Storage
SATA : 2 x SATA 3.0
IDE : N/A
eSATA : N/A
CFast : N/A
mSATA : 1
CompactFlash : N/A

Power Supply
DC : DC-in 12V/19V/24V
ATX : N/A

Operating Temperature
0 to 60^oC

Operating Humidity
10 to 90 percent, non-condensing

Storage Temperature
-20 to 80^oC

Storage Humidity
10 to 90 percent, non-condensing

Form Factor
146mm x 102mm (3.5 inch)

Item Dimension (L inchxW inchxH inch)
15 x 12 x 10

Weight
20.37lb

Warranty Information
N/A
