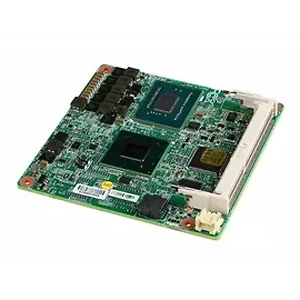

Msi 919-98D7-001 Motherboard 919-98D7-001 MS-98D7 Core i7-3517UE QM77 DDR3 SATA PCI Express USB COM Express Retai

CPU
3rd Gen Intel Mobile Core^TM i3-3217UE/1020E Celeron Processor

Frequency
2.8GHz/1.6GHz/2.2GHz

L2 Cache
4MB/3MB/2MB

CPU Type
BGA

Chipset
Intel QM77 Express

BIOS
AMI

Memory
Single-channel DDR3 1600MHz

Max. Capacity
Up to 8GB

Socket
1 x 204-pin SO-DIMM

Display
Intel HD Graphics

Graphic Memory
Shared system memory up to 1.7GB SDRAM

LVDS
Dual-channel 24-bit

VGA
1

DVI, HDMI, DisplayPort
3 DDI ports support DVI/HDMI/DP
HDMI (DDI1 supports Video out also)

Multiple Display
2 independent displays
3 independent displays

Display Mode
VGA up to 2048 x 1536
LVDS up to 1920 x 1200 at 60 Hz
3 x DDI: HDMI/DVI up to 1920 x 1200 at 60 Hz, DP up to 2560 x 1600 at 60 Hz

Ethernet
Intel 82579LM GbE-PHY LAN (AMT 8.0 supported)

Audio
Support HD audio interface to carrier board

Watchdog Timer
255-level Watchdog Timer

Smart Fan
Yes

TPM
N/A

USB
8 x USB 2.0 (to carrier board)
4 x USB 3.0 (to carrier board)

Serial
2 x COM ports (to carrier board)

GPIO
8-bits (4 x GPI, 4 x GPO), 5V

Expansion Slot
PCIe x 16 : 1
PCIe x 1 : 7

Storage
SATA : 2 x SATA 3.0, 2 x SATA 2.0

Power Supply
DC : N/A
ATX : ATX +12 V and +5 VSB (standby power)
AT: +12 V

Operating Temperature
0 to 60^oC

Storage Temperature
-20 to 80^oC

Operating Humidity
10 to 90 percent, non-condensing

Storage Humidity
10 to 90 percent, non-condensing

Form Factor
95mm x 95mm (COM Express compact module)

Item Dimension (L inchxW inchxH inch)
21 x 14 x 12

Weight
22.00lb

Warranty Information
N/A
