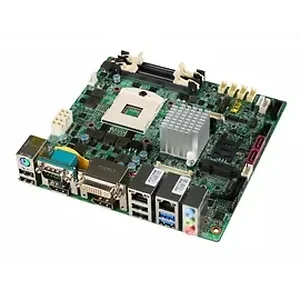

Msi 919-98C8-004 Motherboard 919-98C8-004 MS-98C8 Core Mobile rPGA989 QM77 DDR3 Intel HD Graphics SATA USB Mini-I

CPU
3rd-gen Intel Core^TM Mobile processor

CPU Type
Socket G2 (rPGA 989)

Front Side Bus
N/A

Chipset
Intel QM77 Express

BIOS
AMI UEFI

System Memory
Dual-channel DDR3 SO-DIMMs 1066/1333/1600MHz (non-ECC, unbuffered standard/low voltage)

Max. Capacity
Up to 16GB

Socket
2 x 204-pin SO-DIMMs

Graphic Controller
Intel HD Graphics

LVDS
Yes (dual channel 18/24-bit)

eDP
N/A

VGA
N/A

DVI
1 x DVI-I (VGA+DVI-D)

HDMI
N/A

DisplayPort
2

Display Mode
2 independent displays supported (SNB CPU only)
3 independent displays supported (IVB CPU only)

Ethernet
1 x Intel 82579 GbE LAN PHY
1 x Intel I210-AT PCIe GbE LAN

Audio
Realtek ALC887 HD Audio Codec

Super I/O
Fintek F81866

Watchdog Timer
255-level Watchdog Timer

Smart Fan
Yes

TPM
Through pin header

USB
6 x USB 2.0 (4 x rear, 2 x internal)
4 x USB 3.0 (2 x rear, 2 x internal)

Serial
4 x COM ports (COM1: rear, COM2 to 4: internal)
COM1: RS-232/422/485, 0V/5V/12V
COM2 to 4: RS-232, 0V/5V/12V

Parallel
N/A

PS/2
1 x PS/2 port for keyboard and mouse

GPIO
8-bits (4 x GPI, 4 x GPO)

Expansion Slot
PCIe x 16 : N/A
PCIe x 4 : N/A
PCIe x 1 : N/A
PCI : N/A
Mni-PCI : E 2 (one with mSATA function)

Storage
SATA: 2 x SATA 3.0, 2 x SATA 2.0
IDE : N/A
eSATA : N/A
CFast : N/A
mSATA : 1 (shared with Mini-PCIe slots)
CompactFlash : N/A

Power Adaptor
DC-in 12V/19V

Power Supply
N/A

Operating Temperature
0 to 70^oC

Storage Temperature
-20 to 80^oC

Operating Humidity
10 to 90 percent, non-condensing

Storage Humidity
10 to 90 percent, non-condensing

Form Factor
170mm x 170mm (Mini-ITX)

Item Dimension (L inchxW inchxH inch)
21 x 19 x 16

Weight
39.00lb

Warranty Information
N/A
