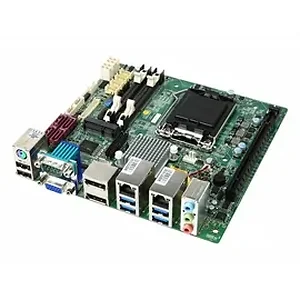

Msi 919-98C7-003 Motherboard 919-98C7-003 MS-98C7 Intel Core LAG1150 Q87 Intel HD Graphics DDR3 SATA USB Mini-ITX

CPU
4th-gen Intel Core ^TM processor (formerly Haswell)

CPU Type
LGA

Front Side Bus
N/A

Chipset
Intel Q87 Express

BIOS
AMI 128Mbit SPI

System Memory
Dual-channel DDR3/DDR3L 1333/1600MHz

Max. Capacity
Up to 16GB

Socket
2 x 204-pin SO-DIMMs

Graphic Controller
Within CPU

LVDS
Yes (dual channel 24-bit)
Display from LVDS interface, please make sure LVDS cable pin 12 signal is GND for LVDS panel be detected.

eDP
N/A

VGA
Yes

DVI
N/A

HDMI
N/A

DisplayPort
2

Display Mode
3 independent displays

Ethernet
1 x Intel I217-LM GbE LAN PHY (iAMT 9.0 supported)
1 x Intel I210-AT PCIe GbE LAN

Audio
Realtek ALC887 HD Audio Codec

Super I/O
Fintek F81866

Watchdog Timer
255-level Watchdog Timer

Smart Fan
Yes

TPM
1 x 2x7-pin header for TPM module expansion

USB
6 x USB 2.0 (4 x internal, 2 x rear ) , 4 x USB 3.0 (rear)

Serial
5 COM ports (COM1: rear, COM2 to 5: internal)
COM1: RS-232/422/485, 0V/5V/12V
COM2: RS-232 with WOR function
COM3 to 5: RS-232, 0V/5V/12V

Parallel
1

PS/2
1 x PS/2 port for keyboard and mouse

GPIO
8-bits (4 x GPI, 4 x GPO)

Expansion Slot
SPDIF out : 1
PCIe x 16 : 1
PCIe x 4 : N/A
PCIe x 1 : N/A
PCI : N/A
Mni-PCI E : 1 x Full-size (with mSATA), 1 x Half-size

Storage
SATA : 4 x SATA 3.0
IDE N/A
eSATA : N/A
CFast : N/A
mSATA : 1
CompactFlash : N/A

Power Adaptor
DC-in 12V

Power Supply
N/A

Operating Temperature
0 to 60^oC

Storage Temperature
10 to 90 percent, non-condensing

Operating Humidity
-20 to 80 ^oC

Storage Humidity
10 to 90 percent, non-condensing

Form Factor
170mm x 170mm (Mini-ITX)

Item Dimension (L inchxW inchxH inch)
21 x 19 x 16

Weight
39.00lb

Warranty Information
N/A
