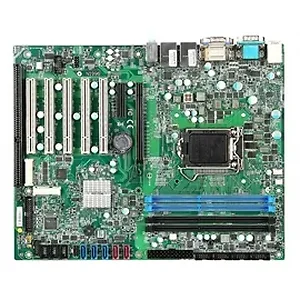

Msi 919-98A9-002 Motherboard 919-98A9-001 Core i7/i5/i3 LGA1155 Q77 32GB DDR3 Intel HD Graphics SATA USB ATX with

CPU
Intel Core^TM i7/i5/i3/Pentium/Celeron processor

CPU Type Socket
LGA 1155

Front Side Bus
N/A

Chipset
Intel Q77 Express

BIOS
AMI 128Mbit SPI

Memory
Dual-channel DDR3 1066/1333/1600MHz (non-ECC)

Max. Capacity
Up to 32GB

Socket
4 x 240-pin DIMMs

Display
Intel HD Graphics

LVDS
N/A

eDP
N/A

VGA
Yes

DVI
Yes(DVI-D)

HDMI
N/A

DisplayPort
Yes

Display Mode
2 independent displays supported by SNB processor
3 independent displays supported by IVB processor

Ethernet
1 x Intel 82579LM GbE LAN PHY
1 x Intel 82583V GbE LAN

Audio
Realtek ALC887 HD Audio Codec

Super I/O
Fintek F81866

Watchdog Timer
255-level Watchdog Timer

Smart Fan
Yes

TPM
1 x 2x7-pin boxheader for TPM module expansion

USB
4 x USB 3.0 (rear)
8 x USB 2.0 (2 x rear, 6 x internal)

Serial
6 x COM ports (COM1: rear, COM2to6: internal)
COM1and2: RS-232/422/485, 0V/5V/12V
COM3 to 6: RS-232, 0V/5V/12V

Parallel
Yes

PS/2
1 x PS/2 port by Y-cable for keyboard and mouse

GPIO
8-bits (4 x GPI, 4 x GPO)

Expansion Slot
PCIe x 16 : 1
PCIe x 4 : 1
PCIe x 1 : N/A
PCI : 5
Mni-PCIe :
ISA : 1 (optional)

Storage
SATA: 2 x SATA 3.0, 3 x SATA 2.0(support RAID 0, 1, 5, 10)
IDE : N/A
eSATA : N/A
CFast : N/A
mSATA : 1
CompactFlash : N/A

Power Adaptor
N/A

Power Supply
ATX-24P, 12V-4P

Operating Temperature
0 to 60^oC

Storage Temperature
-20 to 80^oC

Operating Humidity
10 to 90 percent non-condensing

Storage Humidity
10 to 90 percent, non-condensing

Form Factor
305mm x 244mm (ATX)

Item Dimension (L inchxW inchxH inch)
15 x 14 x 12

Weight
16 lb

Warranty Information
N/A
