Product Overview

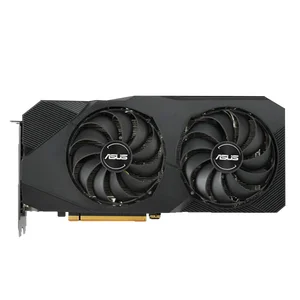

Powered by AMD Radeon with PCI 4.0 performance, each ASUS Dual-fan RX 5700 O8G Gaming Graphics Card is compatibility tested with the latest games and applications by our 144-hour validation program. Keep cool with dual Axial-Tech fans while experiencing every rich detail in 5K 120Hz using DisplayPort 1.4 with DSC.
Technical Specifications
Graphics Engine
AMD Radeon RX 5700 Bus Standard
PCI Express 4.0 OpenGL
OpenGL4.6 Video Memory
GDDR6 8GB Engine Clock OC Mode
P Mode : 1565 MHz (Base clock), Up to 1720 MHz (Game clock), 1750 MHz (Boost clock) Engine Clock Gaming Mode
P Mode : 1515 MHz (Base clock), Up to 1675 MHz (Game clock), 1750 MHz (Boost clock) Stream Processors
2304 Memory Clock
14 Gbps Memory Interface
256-bit Resolution
Digital Max Resolution:7680x4320 Interface
HDMI Output : Yes x 1 (Native) (HDMI 2.0b)
Display Port : Yes x 3 (Native) (DisplayPort 1.4)
HDCP Support : Yes (2.3) Maximum Display Support
6 NVlink/ Crossfire Support
Yes Recommended PSU
600W Power Connectors
1 x 6-pin, 1 x 8-pin Accessories
1 x Quick Guide Software
ASUS GPU Tweak II and Driver Slot
2.7 slot Note
Game Frequency is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Crossfire support DX12 and Vulkan only." Item Dimension (L"xW"xH")
16 x 10 x 4
Weight
5 lbs
Warranty Information
3 years
