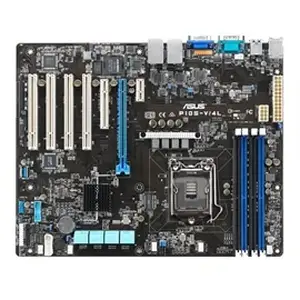

Asus 90SB05A0-M0UAY0 Motherboard P10S-V/4L LGA1151 C236 DDR4 PCI Express SATA USB ATX Retail

Processor / System Bus
1 x Socket LGA1151
Intel Xeon processor E3-1200 v5 product family
Intel Core i3 processors
Intel Pentium processors
Intel Celeron processors Core Logic
Intel C236 Chipset Memory
Total Slots : 4 (2-channel)
Capacity : Maximum up to 64GB UDIMM
Memory Type :DDR4 2133 UDIMM non ECC and with ECC
Memory Size :16GB Expansion Slots
Total Slot : 6
Slot Location 1 : PCI 32bit/33MHz
Slot Location 2 : PCI 32bit/33MHz
Slot Location 3 : PCI 32bit/33MHz
Slot Location 4 : PCI 32bit/33MHz
Form Factor
ATX (12"x9.6", 305mm x 244mm) Storage
SATA Controller :
Intel C236
8 x SATA3 6Gb/s ports
Intel Rapid Storage Technology Enterprise(RSTe) (For Linux/Windows)
(Support Software RAID 0, 1, 5, 10 )

SAS Controller :
ASUS PIKE II 3008-8i 8-port SAS 12G RAID card(Optional)
ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card(Optional) Networking
4 x Intel I210AT Graphic
Aspeed AST1400 with 64MB VRAM On Board I/O
1 x TPM header
1 x PSU Power Connector (24-pin ATX power connector + 8-pin ATX 12V power connector)
1 x USB 3.0 pin header , Up to 2 Devices
1 x USB 2.0 pin header , Up to 2 Devices
1 x USB connector
6 x Fan Header , 4pin
1 x Chassis Intruder
4 x Front LAN LED
1 x Device Power Connector
1 x VGA Header
1 x LPT Back I/O Ports
1 x External Serial Port
2 x USB 3.0, 2 x USB 2.0
1 x VGA Port
4 x GbE LAN
1 x PS/2, KB/Mouse Management Solution
ASWM Enterprise Environment
Operation temperature: 10^oC to 35^oC
Non operation temperature: -40^oC to 70^oC
Non operation humidity: 20 percent to 90 percent ( Non condensing) Item Dimension (L inchxW inchxH inch)
14 x 11 x 3

Weight
3.30lb

Warranty Information
3 Years with 1st Year ARS
