Out of Stock
Condition: New
| Main Specifications |

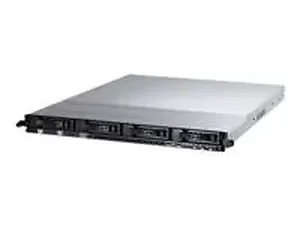

| Product Description | ASUS RS300-E7/PS4 - no CPU |
| Type | Server |
| Form Factor | Rack-mountable - 1U |
| Dimensions (WxDxH) | 17.5 in x 24.2 in x 1.7 in |
| Weight | 33.1 lbs |
| Server Scalability | 1-way |
| Processor | No CPU |
| RAM | 0 MB DDR3 SDRAM |
| Storage Controller | RAID ( Serial ATA-600 ) ; RAID ( Serial ATA-300 ) |
| Server Storage Bays | Hot-swap 3.5" |
| Hard Drive | None. |
| Monitor | None. |
| Graphics Controller | ASPEED AST2050 |
| Video Memory | 16 MB |
| Networking | Network adapter - Ethernet, Fast Ethernet, Gigabit Ethernet - Ethernet Ports : 4 x Gigabit Ethernet |
| Manufacturer Warranty | 3 years warranty |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Server Scalability | 1-way |
| Front Accessible Bays Qty | 1 |
| Hot-Swap Bays Qty | 4 |
| Width | 17.5 in |
| Depth | 24.2 in |
| Height | 1.7 in |
| Weight | 33.1 lbs |
| Processor | |
| Type | No CPU |
| Max Supported Qty | 1 |
| Upgradability | Upgradable |
| Mainboard | |
| Chipset Type | Intel C204 |
| RAM | |
| Installed Size | 0 MB |
| Technology | DDR3 SDRAM |
| Form Factor | DIMM 240-pin |
| Features | Unbuffered, dual channel memory architecture |
| Storage Controller | |
| Type | 1 x RAID - integrated |
| Controller Interface Type | Serial ATA-600 |
| Channel Qty | 2 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
| Storage Controller (2nd) | |
| Type | 1 x RAID - integrated |
| Controller Interface Type | Serial ATA-300 |
| Channel Qty | 2 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
| Storage | |
| Hard Drive | None. |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Type | Integrated |
| Graphics Processor | ASPEED AST2050 |
| Video Memory | 16 MB |
| Networking | |
| Networking | Network adapter - integrated |
| Ethernet Ports | 4 x Gigabit Ethernet |
| Ethernet Controller(s) | 4 x Intel 82574L |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Bays | 1 (total) / 1 (free) x front accessible - 5.25" Slim Line 4 (total) / 4 (free) x hot-swap - 3.5" |
| Expansion Slot(s) | 1 (total) / 1 (free) x processor - LGA1155 Socket 4 (total) / 4 (free) x memory - DIMM 240-pin 1 (total) / 1 (free) x PCI Express x16 - half-length, full-height ( x4 mode ) 1 (total) / 1 (free) x PCI Express x8 - half-length, full-height ( x4 mode ) 1 (total) / 1 (free) x ASUS PIKE |
| Interfaces | 1 x serial - RS-232 - 9 pin D-Sub (DB-9) 4 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 4 x Hi-Speed USB - 4 pin USB Type A 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) 1 x keyboard - generic - 6 pin mini-DIN (PS/2 style) 1 x mouse - generic - 6 pin mini-DIN (PS/2 style) 1 x management - RJ-45 |
| Miscellaneous | |
| Compliant Standards | TUV, EN55022, UL 1950, CSA 22.2 No. 950, 80 PLUS |
| Power | |
| Device Type | Power supply |
| Installed Qty | 1 |
| Power Provided | 350 Watt |
| Operating System / Software | |
| Software | Drivers & Utilities |
| Manufacturer Warranty | |
| Service & Support | 3 years warranty |
| Service & Support Details | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
Asus 90S6MA0000L100UET RS300 E7 PS4 SERVER BD 1U RACK MOUNT 15 INCH
