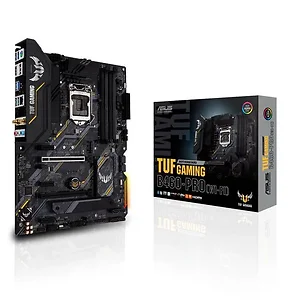

Asus 90MB13P0-M0AAY0 TUF GAMING B460-PRO (WI-FI) LGA1200/ Intel B460/ DDR4/ 2-Way CrossFireX/ SATA3&USB3.2/ M.2/ WiFi/ B

CPU
Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Refer to www.asus.com for CPU support list
Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset
Intel B460 Memory
4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem
10th Gen Intel Corei9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphic
Integrated Graphics Processor
1 x DisplayPort 1.4
1 x HDMI 1.4b
Graphics specifications may vary between CPU types.
Support DisplayPort 1.4 with max. resolution of 4096 x 2304 at 60Hz. Please refer to www.intel.com for any update. Multi-GPU Support
Supports AMD 2-Way CrossFireX Technology Expansion Slots
Intel 10th Gen Processors
1 x PCIe 3.0 x16 (x16 mode)
Intel B460 Chipset
1 x PCIe 3.0 x16 (x4 mode)
3 x PCIe 3.0 x1 Storage
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel B460 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA and PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel Rapid Storage Technology supports
Intel Optane Memory Ready LAN
Intel I219-V 1Gb Ethernet Wireless Data Network
Intel Wi-Fi 6 AX200
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Supports up to 2.4Gbps max data rate
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160
Supports PCIe interface Bluetooth
Bluetooth v5.1
BT 5.1 function will be ready in Windows 10 build 19041 or later. Audio
Realtek ALC S1200A 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
- Exclusive DTS Custom for GAMING Headsets.
- Audio cover
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
Choose the chassis with HD audio module in front panel to support 8-channel audio output. USB Ports
Rear USB Port ( Total 6 )
2 x USB 3.2 Gen 2 port(s)(2 x Type-A)
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
Front USB Port ( Total 6 )
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s) Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Sync
AI Suite 3
- Performance And Power Saving Utility
Digi+ VRM
EPU
Fan Xpert 4
- EZ update
- PC Cleaner
- System Information
AI Charger
ASUS Turbo LAN
DTS Custom for GAMING Headsets
Norton Anti-virus software (Free Trial for 60 days)
DAEMON Tools
Google Chrome Browser and Google Toolbar
TUF GAMING CPU-Z
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode ASUS Special Features
ASUS TUF PROTECTION
- ASUS DIGI+ VRM
- ASUS Enhanced DRAM Overcurrent Protection
- ASUS ESD Guards
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core+
- ASUS Stainless-Steel Back I/O
ASUS Q-Design :
- ASUS Q-DIMM
- ASUS Q-Slot
- ASUS Q-LED (CPU red, DRAM yellow, VGA white, Boot Device yellow green)
ASUS Thermal Solution:
- Aluminum M.2 heatsink
- Aluminum heatsink design
ASUS EZ DIY
- Box Headers
AURA Sync
- Addressable Gen 2 RGB header
- Standard RGB headers Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 Type-A
4 x USB 3.2 Gen 1 Type-A
3 x Audio jack(s)
1 x ASUS Wi-Fi Module Internal I/O Ports
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA and PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header Accessories
Users manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x TUF Gaming Sticker
1 x TUF Certification card(s)
1 x Wi-Fi moving antenna
1 x M.2 SSD screw package(s)
1 x M.2 Rubber Package(s) BIOS
128 Mb Flash ROM, UEFI AMI BIOS Manageability
WOL by PME, PXE Operating System
Windows 10 64-bit
