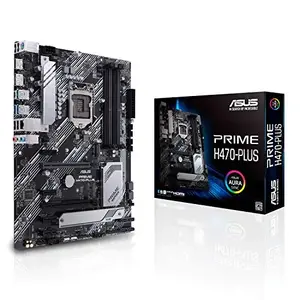

90MB1360-M0AAYC - Asus Prime H470Plus CSM LGA1200 G10

CPU
Intel Socket 1200 for 10th Gen Intel Core^TM, Pentium Gold and Celeron Processors ¹
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0²
1. Refer to www.asus.com for CPU support list
2.Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. Chipset
Intel H470 Memory
4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory ¹
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem
1. 10th Gen Intel Core^TMi9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). Graphic
Integrated Graphics Processor
1 x DisplayPort 1.4 ²
1 x HDMI 1.4b
Graphics specifications may vary between CPU types.
2.Support DisplayPort 1.4 with max. resolution of 4096 x 2304 at 60Hz. Please refer to www.intel.com for any update. Multi-GPU Support
Supports AMD 2-Way CrossFireX Technology Expansion Slots
Intel 10th Gen Processors
1 x PCIe 3.0 x16 (x16 mode)
Intel H470 Chipset
1 x PCIe 3.0 x16 (x4 mode)
4 x PCIe 3.0 x1 Storage
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel H470 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (SATA and PCIE 3.0 x 2 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel Rapid Storage Technology supports
Intel Optane^TM Memory Ready LAN
Realtek RTL8111H Wireless Data Network
M.2 slot only (Key E) (Support CNVI and PCIe interface)¹
1.Wi-Fi module is sold separately. Audio
Realtek ALC887 8-Channel High Definition Audio CODEC ¹
- Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
1. Choose the chassis with HD audio module in front panel to support 8-channel audio output. USB Ports
Rear USB Port ( Total 8 )
2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x Type-C)
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
4 x USB 2.0 port(s)(4 x Type-A)
Front USB Port ( Total 7 )
4 x USB 3.2 Gen 1 port(s)
3 x USB 2.0 port(s) Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Sync
AI Suite 3
- Performance And Power Saving Utility
EPU
Digi+ VRM
Fan Xpert 2+
- EZ update
AI Charger
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode ASUS Special Features
ASUS 5X PROTECTION III
- ASUS DIGI+ VRM
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum M.2 heatsink
- Aluminum heatsink design
AURA Sync
- Standard RGB header
- Addressable Gen 2 RGB header Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C)
2 x USB 3.2 Gen 1 Type-A
4 x USB 2.0
3 x Audio jack(s) Internal I/O Ports
1 x CPU Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 3 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA and PCIE 3.0 X2 mode)
1 x M.2 with E key for Wi-Fi module
1 x SPI TPM header
6 x SATA 6Gb/s connector(s)
1 x S/PDIF out header(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x COM port header Accessories
Users manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x M.2 SSD screw package(s)
1 xM.2 Key E screw package(s)
1 x M.2 Rubber Package(s) BIOS
128 Mb Flash ROM, UEFI AMI BIOS Manageability
WOL by PME, PXE Operating System
Windows 10 64-bit Form Factor
ATX Form Factor
