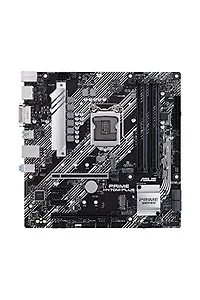

90MB1350-M0AAYC - Asus MB PRIME H470M-PLUS CSM LGA1200 H470 DDR4 128GB DP HDMI DVI-D mATX Retail

CPU
Intel Socket LGA1200 for 10th Gen Intel Core^TM, Pentium Gold and Celeron processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel H470 Chipset
Memory
4 x DIMM, Max. 128GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem
For 10th Gen Intel processors, only Core^TM i9/i7 CPUs support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
Graphics
1 x DisplayPort 1.4
1 x HDMI^TM 1.4b
1 x DVI-D
Graphics specifications may vary between CPU types.
Support DisplayPort 1.4 with max. resolution of 4096 x 2304 at 60Hz.
Expansion Slots
Intel 10^th Gen Processors
1 x PCIe 3.0 x16 slot (supports x16 mode)
Intel H470 Chipset
1 x PCIe 3.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
Multi-GPU Support
Supports AMD CrossFireX^TM Technology
Total supports 2 x M.2 slots and 5 x SATA 6Gb/s ports
Storage
Intel H470 Chipset
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports SATA at PCIe 3.0 x4 mode)
5 x SATA 6Gb/s ports
Intel Rapid Storage Technology supports Raid 0,1,5,10
Intel Optane^TM Memory Ready
When a device in SATA mode is installed on the M.2_2 socket, SATA6G_1 port cannot be used.
Ethernet
1 x Intel 1219V 1Gb Ethernet
USB
Rear USB (Total 6 ports)
2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 8 ports)
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
Realtek ALC887 8-Channel High Definition Audio CODEC
- Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192kHz playback
Audio Features
- LED-illuminated audio trace path design
- Premium Japanese audio capacitors
- Audio Shielding
- Dedicated audio PCB layers
A chassis with an HD audio module in the front panel is required to support 8-channel audio output.
Back I/O Ports
2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x DVI-D port
1 x HDMI^TM
1 x Intel I219V 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
Fan and cooling related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
5 x SATA 6Gb/s ports
USB
2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x 20-3 pin System Panel header with Chassis intrude function
1 x SPI TPM header (14-1pin)
Special Features
ASUS 5X PROTECTION III
- ASUS DIGI+ VRM
- ASUS LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot Core+
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
Software Features
ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility
- EPU
- Digi+ VRM
- EZ update
- Fan Xpert 4
AI Charger
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 SSD screw package
Installation Media
1 x Support DVD
Documentation
1 x User manual
Operating System
Windows 10 - 64 bit
Form Factor
mATX Form Factor
Item Dimension (L"x W"x H")
11 x 11 x 3
Weight
3.00 LB
Warranty Information
3 years
