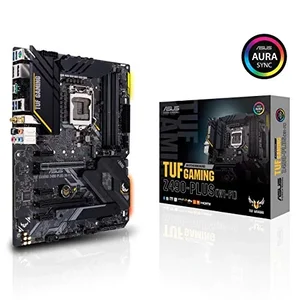

Asus 90MB1330-M0AAY0 MB TUF GAMING Z490-PLUSWIFI S1200 Z490 DDR4 ATX Retail

CPU
Build in Intel Socket 1200 for 10^th Gen Intel Core^TM, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Build in Intel Z490
Memory
4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
10th Gen Intel Core^TMi9/i7 CPUs support 2933/2800/2666/2400/2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphic
Integrated Graphics Processor
1 x DisplayPort 1.4
1 x HDMI 1.4b
Graphics specifications may vary between CPU types.
Support DisplayPort 1.4 with max. resolution of 4096 x 2304 at 60Hz. Please refer to www.intel.com for any update.
Multi-GPU Support
Supports AMD 2-Way CrossFireX Technology
Expansion Slots
Intel 10th Gen Processors
1 x PCIe 3.0 x16 (x16 mode)
Intel Z490 Chipset
1 x PCIe 3.0 x16 (x4 mode)
3 x PCIe x1
Storage
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports
Intel Z490 Chipset :
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA and PCIE 3.0 x 4 mode) ¹
1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA and PCIE 3.0 x 4 mode) ²
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel Rapid Storage Technology supports
Intel Optane^TM Memory Ready
LAN
Intel I219-V 1Gb Ethernet
TUF LANGuard
Wireless Data Network
Intel Wi-Fi 6 AX201
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Supports up to 2.4Gbps max data rate
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160
Supports CNVI interface
Bluetooth
Bluetooth v5.1
BT 5.1 function will be ready in Windows 10 build 19041 or later.
Audio
Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- Audio cover
- Audio Shielding
- Dedicated audio PCB layers
- Premium Japanese audio capacitors
Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
USB Ports
Rear USB Port ( Total 6 )
2 x USB 3.2 Gen 2 port(s)(1 + Type-A +1 + USB Type-C)
4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
Front USB Port ( Total 6 )
1 x USB 3.2 Gen 2 front panel connector port(s)(1 x USB Type-C)
1 x USB 3.2 Gen 1 port(s)(2 x Type-A)
1 x USB 2.0 port(s)(2 x Type-A)
1 x USB 2.0 port(s)(1 x Type-A)
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Sync
AI Suite 3:
- Performance And Power Saving Utility
Turbo V Evo
EPU
Digi+ VRM
Fan Xpert 4
System information
- EZ update
AI Charger
ASUS Turbo LAN
DTS Custom for GAMING Headsets
Norton Anti-virus software (Free Trial for 90 days)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Special Features
ASUS TUF PROTECTION
- ASUS DIGI+ VRM (- Digital power design with Dr. MOS)
- ASUS Enhanced DRAM Overcurrent Protection
- ASUS ESD Guards
- TUF LANGuard
- ASUS Overvoltage Protection
- ASUS SafeSlot
- ASUS Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-LED (CPU (red), DRAM (yellow), VGA (white), Boot Device (yellow green))
- ASUS Q-Slot
ASUS Thermal Solution
- Stylish heatsink
ASUS EZ DIY
- Procool
AURA Sync
- Standard RGB headers
- Addressable Gen 2 RGB header
Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C)
4 x USB 3.2 Gen 1 (blue) Type-A
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x ASUS Wi-Fi Module
Internal I/O Ports
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
2 x Aura RGB Strip Headers
1 x Addressable Gen 2 header(s)
1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 1 USB 2.0 port(s)
2 x M.2 Socket 3
6 x SATA 6Gb/s connector(s)
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x Clear CMOS jumper(s)
1 x COM port header
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
Accessories
Users manual
1 x ASUS Fan Holder
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x TUF GAMING Sticker
1 x TUF Certification card(s)
1 x Wi-Fi moving antenna
BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Operating System
Windows 10 64-bit
