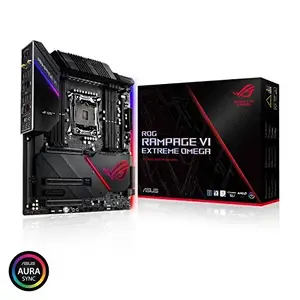

Asus 90MB11K0-M0AAY0 ROG RAMPAGE VI EXTREME OMEGA LGA2066/ Intel X299/ DDR4/ 3-Way CrossFireX & 3-Way SLI/ SATA3&USB3.1/

CPU
Intel Core^TMX-Series Processors Family on LGA 2066 Socket
Supports Intel Virtual RAID on CPU (VROC)
Supports 14nm CPU
Supports Intel Turbo Boost Max Technology 3.0
The support of these features depends on the CPU types.
Chipset
Intel X299 Chipset
Memory
Intel Core^TM X-Series Processors (6-core above)
8 x DIMM, Max. 128GB, DDR4
4266+(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/ 3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz, Non-ECC, Un-buffered Memory
Quad channel memory architecture
Supports Intel Extreme Memory Profile (XMP)
Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Multi-GPU Support
Supports NVIDIA 3-Way/2-Way SLI^TM Technology
Supports AMD 3-Way/2-Way CrossFireX^TM Technology
Expansion Slots
44-Lane CPU (18-core, 12-core 10-core CPU)
3 x PCIe 3.0 x16 slots (supports x16, x16/x16 or x16/x8/x8 modes)
28-Lane CPU (6-core and 8-core CPU)
3 x PCIe 3.0 x16 slots (supports x16, x16/x8, x8/x8/x8 modes)
Intel X299 Chipset
1 x PCIe 3.0 x 4 slot
Storage
Intel Core^TM X-Series Processors support with Intel Rapid Storage Enterprise Technology
1 x DIMM.2 Module supports
- 2 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 (supports PCIe 3.0 x 4 mode)
1 x M.2_2 Socket 3 with M Key, type 2242/2260/2280/22110 (supports PCIe 3.0 x 4 mode)
1 x U.2 port, support PCIe 3.0 x4 NVME storage devices
DIMM.2_2 will be disabled when using 28-Lane CPU.
The U.2 port shares bandwidth with onboard M.2_2 slot.
U.2 port and M.2_2 slot will be disabled when using 28-Lane CPU.
Intel X299 Chipset with RAID 0, 1, 5, 10 and Intel Rapid Storage Technology support
1 x M.2_1 Socket 3 with M Key, type 2242/2260/2280 (supports PCIe 3.0 x 4 and SATA modes)
6 x SATA 6Gb/s ports
Intel Optane^TM Memory Ready
LAN
Aquantia AQC-107 10G LAN
Intel I219-V Gigabit LAN
Anti-surge LANGuard
ROG GameFirst Technology
Wireless Data Network
Intel Wireless-AC 9260
2x2 MU-MIMO 802.11 a/b/g/n/ac support dual frequency band 2.4/5 GHz
Up to 1.73Gbps transfer speed
Supports channel bandwidth: HT20/HT40/HT80/HT160
Bluetooth
Bluetooth v5.0
Audio
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
- Supports: Jack-detection, Multi-streaming, and Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- ESS SABRE9018Q2C
- Supports up to 32-Bit/192kHz playback
Audio Features:
- LED-illuminated design
- Optical S/PDIF out port at back Panel
- Sonic Radar III
- Sonic Studio III + Sonic Studio Link
Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
USB
Intel X299 Chipset
- 6 x USB 3.1 Gen 1 ports (at back panel)
- 4 x USB 2.0 ports (at mid-board)
ASMedia USB 3.1 Gen 2 Controller
- 1 x USB 3.1 Gen 2 front panel connector
- 2 x USB 3.1 Gen 2 ports (1 x Type-A red and 1 x Type-C ports at back panel)
ASMedia USB 3.1 Gen 1 Controller
- 8 x USB 3.1 Gen 1 ports (4 at back panel, 4 at mid-board)
ROG Exclusive Features
ROG DIMM.2 module with heatsink
ROG Aluminum heatsink cover
Clear CMOS Button
Extreme Engine Digi+
- MicroFine Alloy Choke
- PowIRstage IR3555 MOSFETs
- 10K Black Metallic Capacitors
ROG Extreme OC kit :
- MemOK II Button
- ReTry button
- Safe Boot button
- Start Button
- Reset Button
- Slow Mode
- LN2 Mode
ProbeIT
ROG Exclusive Software
- Mem Tweakit
- RAMCache III
- ROG RAMDisk
- Overwolf
- CPU-Z
- GameFirst V
- Sonic Studio III + Sonic Studio Link
- Sonic Radar III
Special Features
OC Design- ASUS PRO Clock II Technology
ASUS Dual Intelligent Processors 5
- 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
- Aura Addressable Strip Header(s)
ASUS Exclusive Features
- USB BIOS Flashback
- MemOK II
- AI Suite 3
- Ai Charger
- Armoury Crate
- Pre-mounted I/O Shield
- ASUS NODE: hardware control interface
- OptiMem II
- ASUS C.P.R.(CPU Parameter Recall)
- BUPDATER
- BIOS Flashback Button
- Clear CMOS Button
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design
- Q-LED (CPU (red), DRAM (yellow), VGA (white), Boot Device (green))
- Q-Slot
- Q-DIMM
- Q-Connector
LiveDash
Back I/O Ports
1 x Clear CMOS button
1 x BIOS Flashback button
1 x 2x2 Wi-Fi Module
1 x Aquantia AQC-107 10G LAN port
1 x Anti-surge LAN (RJ45) port
2 x USB 3.1 Gen 2 ports (1 x Type-C (black) and 1 x Type-A (red))
10 x USB 3.1 Gen 1 ports (blue)
1 x Optical S/PDIF out
5 x LED-illuminated audio jacks
Internal I/O connectors
1 x W_PUMP+ 1
1 x W_PUMP+ 2
1 x WB_SENSOR
1 x AURA addressable header
1 x U.2 port
2 x Aura RGB strip headers
2 x USB 3.1 Gen 1 connectors support additional 4 USB 3.1 gen1 ports
2 x USB 2.0 connectors support additional 4 USB 2.0 ports
1 x M.2_1 Socket 3 with M Key, type 2242/2260/2280 (supports PCIe3.0 x 4 and SATA modes)
1 x M.2_2 Socket 3 with M Key, type 2242/2260/2280/22110 (supports PCIe3.0 x 4 mode)
6 x SATA 6Gb/s connectors
1 x VROC_HW_Key
1 x 4-Pin HS fan connector
1 x 4-Pin CPU fan connector
1 x 4-Pin CPU_OPT fan connector
3 x 4-Pin Chassis fan connectors
1 x 4-Pin H_AMP fan connector
2 x 8-pin EATX 12V power connector
1 x 24-pin EATX power connector
1 x 4-pin EZ_PLUG Power connector(s)
1 x Front panel audio connector (AAFP)
1 x Slow mode switch
1 x MemOK II switch
10 x ProbeIt Measurement Points
1 x Reset button
1 x BIOS Switch button
1 x LN2 mode jumper
1 x NODE connector
1 x Safe Boot button
1 x ReTry button
1 x System panel connector
2 x T_Sensor Connector
1 x 2-pin Water in connector
1 x 2-pin Water out connector
1 x 3-pin Water flow connector
1 x Start button
1 x USB 3.1 Gen 2 front panel connector
1 x DIMM.2 Slot supports 2 M.2 drives (2242-22110)
1 x Pause switch
2 x RSVD switch
1 x speaker header
Accessories
ROG RAMPAGE VI EXTREME OMEGA
1 x Users manual
1 x ROG logo plate sticker
2 x 2-in-1 SATA 6Gb/s cables
1 x ASUS 2x2 dual band Wi-Fi antennas
1 x SLI HB BRIDGE(2-WAY-M)
1 x Q-Connector
1 x Extension cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
1 x USB drive with utilities and drivers
1 x 3-in-1 Thermistor cables
1 x ROG coaster
1 x 2-in-1 ROG weave SATA 6G cable
1 x 2-in-1 M.2 screws kit
1 x ROG Thank you card
1 x Dual function screwdriver
ROG DIMM.2 with heatsink:
1 x ROG DIMM.2 with heatsink
2 x M.2 screws kits
1 x 2-in-1 Rubber pad
Fan Extension Card II:
1 x FAN Extension Card II user manual
1 x Fan Extension Card II
1 x Fan Extension Card II power cable
1 x Fan Extension Card II NODE connector cable
1 x Fan Extension Card II screw package
BIOS
2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.0, ACPI 6.0
Manageability
WfM 2.0, WOL by PME, PXE
Support USB contents
Overwolf
Daemon Tools Software
WinRAR
Anti-virus software (1-year full subscription)
Operating System
Windows 10 - 64 bit
