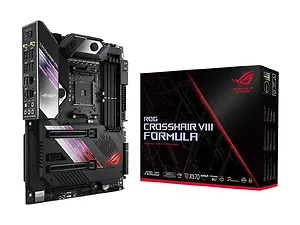

Asus 90MB10Z0-M0AAY0 ROG CROSSHAIR VIII FORMULA Socket AM4/ AMD X570/ DDR4/ 3-Way CrossFireX & 2-Way SLI/ SATA3&USB3.2/

Specifications

• Mfr Part Number: ROG CROSSHAIR VIII FORMULA
• CPU: AMD AM4 Socket for 3rd and 2nd  Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
• Chipset: AMD X570
• Memory:
  • 3rd Gen AMD Ryzen Processors
    - 4 x DIMM, Max. 128GB, DDR4 4600(O.C.)/4533(O.C.)/4400(O.C.)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz, un-buffered memory
  • 2nd Gen AMD Ryzen Processors
    - 4 x DIMM, Max. 128GB, DDR4 3600(O.C.)/3466(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz, un-buffered memory
  • 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
    - 4 x DIMM, Max. 128GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz, un-buffered memory
  • Dual channel memory architecture
  • ECC Memory (ECC mode) support varies by CPU
• Expansion Slots:
  • 3rd Gen AMD Ryzen Processors
    - 2 x PCIe 4.0 x16 SafeSlots (support x16, x8/x8)
  • 2nd Gen AMD Ryzen Processors
    - 2 x PCIe 3.0 x16 SafeSlots (support x16, x8/x8)
  • 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
    - 1 x PCIe 3.0 x16 SafeSlot (supports x8)
  • AMD X570 chipset
    - 1 x PCIe 4.0 x16 (supports x4)
    - 1 x PCIe 4.0 x1
• Multi-GPU:
  • 3rd and 2nd Gen AMD Ryzen Processors
    - Supports NVIDIA 2-Way SLI Technology
    - Supports AMD 3-Way CrossFireX Technology
  • 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
    - Supports AMD 2-Way CrossFireX Technology
• Storage:

  • 3rd Gen AMD Ryzen Processors
    - 1 x M.2 Socket 3 with M key, type 2242/2260/2280 (PCIe 4.0 x4 and SATA modes) storage devices support
  • 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
    - 1 x M.2 Socket 3 with M key, type 2242/2260/2280 (PCIe 3.0 x4 and SATA modes) storage devices support
  • AMD X570 chipset
    - 8 x SATA 6Gb/s ports
    - Support Raid 0, 1, 10
    - 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 (PCIe 4.0 x4 and SATA modes) storage devices support
• LAN:
  • Aquantia AQC-111C 5G LAN
  • Intel Ethernet Controller I211-AT
  • Anti-surge LANGuard
  • ROG GameFirst Technology
• Wireless:
  • Intel Wi-Fi 6  AX200
    2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz
    Supports channel bandwidth: HT20/HT40/HT80/HT160
    Up to 2.4 Gbps transfer speed
• Bluetooth: Bluetooth v5.0
• Audio:
  • ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
    - Supports up to 32-Bit/192kHz playback*
    - High quality 120dB SNR stereo playback output and 113dB SNR recording input
    - Impedance sense for front and rear headphone outputs
    - ESS® ES9023P High Definition DAC
    - SupremeFX Shielding Technology
    - Jack-detection, Multi-streaming, and front panel Jack-retasking
    - Optical S/PDIF out port at back panel
  • Audio Features:
    - Sonic Studio III + Sonic Studio Virtual Mixer
    - Sonic Radar III
    - DTS® Sound Unbound
    *Due to limitations in HAD bandwidth, 32-Bit/192 kHz is not supported for 8-Channel audio
• USB:
  • 3rd Gen AMD Ryzen Processors
    - 4 x USB 3.2 Gen 2 ports (4 ports at back panel, Type-A [red])
  • 2nd Gen AMD Ryzen/2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics Processors
    - 4 x USB 3.2 Gen 1 ports (4 ports at back panel, Type-A [red])
  • AMD X570 Chipset
    - 1 x USB 3.2 Gen 2 front panel connector
    - 4 x USB 3.2 Gen 2 ports (4 ports at back panel, 3 x Type-A [red], 1 x Type-C)
    - 8 x USB 3.2 Gen 1 ports (4 ports at back panel [blue], 4 ports at front panel)
    - 4 x USB 2.0 ports at front panel
• Back I/O Ports: :
  • 1 x Clear CMOS Button
  • 1 x BIOS Flashback Button
  • 1 x 2x2 Wi-Fi Module
  • 8 x USB 3.2 Gen 2 ports (7 x Type-A [red] and 1 x Type-C)
  • 4 x USB 3.2 Gen 1 ports [blue]
  • 1 x Anti-surge 5G LAN (RJ45) port
  • 1 x Anti-surge LAN (RJ45) port
  • 1 x Optical S/PDIF out port
  • 5 x Gold-plated audio jacks
• Internal connectors:
  • 1 x USB 3.2 Gen 2 front panel connector
  • 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
  • 8 x SATA 6Gb/s connectors
  • 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support
  • 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support
  • 1 x 4-Pin CPU_Fan connector
  • 1 x 4-Pin CPU_OPT fan connector
  • 3 x 4-Pin CHA_Fan connectors
  • 1 x 4-Pin AIO_PUMP connector
  • 1 x 4-Pin W_PUMP+ connector
  • 1 x 4-Pin H_AMP fan connector
  • 1 x PCH_Fan
  • 1 x 3-Pin W_FLOW connector
  • 1 x 2-Pin W_IN connector
  • 1 x 2-Pin W_OUT connector
  • 1 x T_Sensor connector
  • 1 x 24-Pin EATX power connector
  • 1 x 8-Pin EATX 12V power connector
  • 1 x 4-Pin EATX 12V power connector
  • 1 x Start button
  • 1 x Reset button
  • 1 x Safe Boot button
  • 1 x Retry button
  • 1 x LN2 mode Jumper
  • 1 x Slow mode switch
  • 1 x NODE connector
  • 1 x System panel connector
  • 1 x Speaker connector
  • 1 x Front panel audio connector (AAFP)
  • 2 x AURA Addressable Gen2 headers
  • 2 x AURA RGB headers
• Accessories:
  • 1 x User guide
  • 1 x Support DVD
  • 1 x ASUS 2x2 dual band Wi-Fi antenna
  • 1 x 4-in-1 SATA 6Gb/s cables
  • 1 x 2-in-1 ROG weave SATA 6G cables
  • 1 x Q-Connector
  • 1 x 2-in-1 M.2 screws package
  • 1 x Extension cable for RGB strips
  • 1 x Extension cable for RGB addressable strips
  • 1 x ROG logo plate sticker
  • 1 x ROG coaster
  • 1 x ROG sticker
  • 1 x ROG thank you card
  • 1 x Cablemod coupon
• BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2
• Manageability: WOL, PXE
• Software:
  • Overwolf
  • WinRAR
  • Anti-virus software (1-year full subscription)
• Operating System Support: Windows 10 64-bit
• Dimensions: 423mm x 190mm x 435mm (16.65 " x 7.48 "x 17.1 ")
• Form Factor: ATX Form Factor, 12 inch x 9.6 inch (30.5cm x 24.4cm)
• Motherboard Only Weight: 1.889 kg
• Full Package Weight: 3.478 kg
