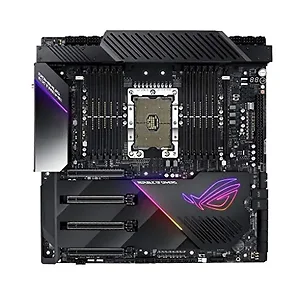

Asus 90MB1020-M0AAY0 THE ROG DOMINUS EXTREME AIMS TO POWER ULTIMATE PC DESKTOPS, WITH SUPPORT FOR 12

CPU
Intel Socket 3647 for Xeon W-3175X Processors
Supports Intel Virtual RAID on CPU (VROC)
Refer to www.asus.com for CPU support list Chipset
Intel C621 Memory
Intel Xeon W-3175X Processor
12 x DIMM, Max. 192GB, DDR4 4200(O.C.)/4000(O.C.)/3800(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory
Six Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Hyper DIMM support is subject to the physical characteristics of individual CPUs. Multi-GPU Support
Supports NVIDIA 4-Way SLI Technology
Supports NVIDIA 3-Way SLI Technology
Supports NVIDIA 2-Way SLI Technology
Supports AMD 4-Way CrossFireX Technology
Supports AMD 3-Way CrossFireX Technology
Supports AMD 2-Way CrossFireX Technology Expansion Slots
48-Lane CPU-
Intel Xeon W-3175X Processor
4 x PCIe 3.0 x16 (x16/x16/x16, x16/x8/x16/x8) Storage
Intel Xeon W-3175X Processor :
2 x ROG DIMM.2 Module support(CPU_DIMM.2), with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
2 x U.2 connector
Intel C621 Chipset :
6 x SATA 6Gb/s port(s),
ASMedia SATA 6Gb/s controller :
2 x SATA 6Gb/s port(s),
Intel Optane Memory Ready
Intel Virtual RAID (VROC) support for CPU RAID LAN
Aquantia AQC-107 10G
Intel I219-LM
Anti-surge LANGuard
ROG GameFirst Technology Wireless Data Network
Intel Wireless-AC 9260
Wi-Fi 802.11 a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Supports MU-MIMO
Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed Bluetooth
Bluetooth 5.0 Audio
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- ESSSABRE9018Q2C DAC/AMP
- Supports up to 32-Bit/192kHz playback
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
- Sonic Radar III
- Sonic Studio III + Sonic Studio Link USB Ports
Intel C621 Chipset :
8 x USB 3.1 Gen 1 port(s) (8 at back panel, +blue)
Intel C621 Chipset :
4 x USB 2.0 port(s) (4 at mid-board)
ASMedia USB 3.1 Gen 2 controller :
1 x USB 3.1 Gen 2 front panel connector port(s)
ASMedia USB 3.1 Gen 2 controller :
4 x USB 3.1 Gen 2 port(s) (4 at back panel, +black+red, 2 x Type-A+2 x Type-C)
ASMedia USB 3.1 Gen 1 controller :
4 x USB 3.1 Gen 1 port(s) (4 at mid-board) ROG Exclusive Features
Clear CMOS button
Extreme Engine Digi+ :
- MicroFine Alloy Chokes
- 10K Black Metallic Capacitors
ROG Extreme OC kit :
- ReTry button
- Safe Boot button
- Start button
- Reset button
- Slow Mode
- LN2 Mode
- PCIe x16 Lane Switch
ProbeIt
USB BIOS Flashback
ROG Patented Pre-mounted I/O Shield
ROG Exclusive Software
- RAMCache III
- RAMDisk
- CPU-Z
- GameFirst V
- Sonic Studio III + Sonic Studio Link
- Sonic Radar III
- Overwolf
ROG DIMM.2 module with heatsink
ROG Aluminum heatsink cover Special Features
Fan Xpert4
- Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
LiveDash OLED 1.77
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
- Aura Addressable Strip Header(s)
ASUS Exclusive Features :
- USB BIOS Flashback
- AI Suite 3
- ASUS CrashFree BIOS 3
- ASUS NODE: hardware control interface
- ASUS EZ Flash 3
- ASUS C.P.R.(CPU Parameter Recall)
- BUPDATER
- BIOS Flashback Button
- Clear CMOS Button
ASUS Q-Design :
- ASUS Q-Code
- ASUS Q-Slot
- ASUS Q-DIMM
- ASUS Q-Connector Back I/O Ports
2 x USB 3.1 Gen 2 (black)Type-C,
2 x USB 3.1 Gen 2 (red)Type-A
8 x USB 3.1 Gen 1 (blue)
1 x Optical S/PDIF out
1 x Clear CMOS button(s)
1 x USB BIOS Flashback Button(s)
1 x ASUS Wi-Fi Module
5 x LED-illuminated audio jacks
1 x Aquantia AQC-107 10G LAN port
Anti-surge LAN (RJ45) port Internal I/O Ports
2 x Aura Addressable Strip Header(s)
2 x Aura RGB Strip Headers
2 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
8 x SATA 6Gb/s connector(s)
1 x VROC_HW_Key
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x CPU OPT Fan connector(s) (1 x 4 -pin)
2 x LED connectors (Back I/O cover, PCH, OLED)
2 x Chassis Fan connector(s) (2 x 4 -pin)
1 x PCH_FAN (1 x 3 -pin)
2 x HS_FAN (2 x 4 -pin)
2 x W_PUMP+ connector (2 x 4 -pin)
1 x WB_SENSOR (1 x 9 -pin)
1 x Thunderbolt header(s)
2 x 6-pin EATX 12 V Power connector
2 x 24-pin EATX Power connector(s)
4 x 8-pin EATX 12V Power connectors
1 x 6-pin EZ_PLUG Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Slow Mode switch(es)
13 x ProbeIt Measurement Points
1 x BIOS Switch button(s)
1 x Node Connector(s)
1 x LN2 Mode jumper(s)
1 x Safe Boot button
1 x ReTry button
1 x 14-1 pin TPM connector
2 x U.2 connector
1 x System panel connector
1 x PCIe x16 lane switch
2 x T_Sensor Connector
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x USB 3.1 Gen 2 front panel connector
1 x Speaker connector
2 x DIMM.2 Slot supports 2 M.2 drives (2242-22110)
1 x PAUSE Switch
2 x RSVD Switch
8 x Radiator Fan Headers
1 x Start button
1 x Reset button
1 x Q-Code Accessories
Users manual
1 x ROG logo plate sticker
4 x M.2 Screw Package
1 x CPU installation tool
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x Fan Extension Card II (6 x 4-pin Chassis Fan connectors, 3 x RGB headers, 3 x 2-pin Thermal sensor header)
1 x Fan Extension Card II power cable
1 x Fan Extension Card II NODE connector cable
1 x Fan Extension Card II screw package
1 x SLI HB BRIDGE(2-WAY-L)
1 x Q-Connector
1 x ROG Logo Sticker(s)
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
3 x Thermistor cable(s)
1 x USB drive with utilities and drivers
1 x ROG coaster(s)
8 x ROG weave SATA 6G cable
2 x ROG DIMM.2 with heatsink
2 x M.2 Pad for ROG DIMM.2 BIOS
2 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, Secure Erase, User Profile, F11 EZ RAID Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, , F4 AURA ON/OFF and F9 Search Manageability
WOL, WOR, PXE Support Disc
Drivers
EZ Update
Anti-virus software (OEM version)
ASUS Utilities Operating System
Windows 10 64-bit
