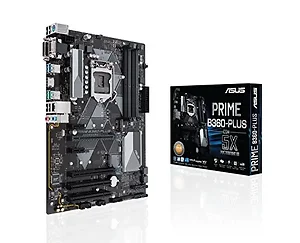

Asus 90MB0WB0-M0AAY0 Motherboard Prime B360-PLUS LGA1151 Intel B360 DDR4 HDMI DVI-D VGA M.2 ATX Retail

CPU
Intel Socket 1151 for 8th Generation Core^TM i7/Core^TM i5/Core^TM i3/Pentium/Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
-The Intel Turbo Boost Technology 2.0 support depends on the CPU types. Chipset
Intel B360 Memory
4 x DIMM, Max. 64GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
- The maximum memory frequency supported varies by processor.
-DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel 8th Gen. 6-core or higher processors. Graphic
Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support : HDMI/DVI-D/D-Sub ports
- Supports HDMI 1.4b with max. resolution 4096 x 2160 at 24 Hz / 2560 x 1600 at 60 Hz
- Supports DVI-D with max. resolution 1920 x 1200 at 60 Hz
- Supports D-sub with max. resolution 1920 x 1200 at 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Supports Intel HD Graphics, InTru^TM 3D, Quick Sync Video, Clear Video HD Technology, Insider^TM
Supports up to 3 displays simultaneously Multi-GPU Support
Supports AMD CrossFireX^TM Technology Expansion Slots
1 x PCIe 3.0/2.0 x16 (x16 mode)
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
2 x PCIe 3.0/2.0 x1
2 x PCI Storage
Intel B360 Chipset :
1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (SATA and PCIE 3.0 X2 mode)
1 x M.2 Socket 3, , with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s), gray
Intel Optane^TM Memory Ready LAN
Realtek RTL8111H, 1 x Gigabit LAN Controller(s) Audio
Realtek ALC887 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
-Choose the chassis with HD audio module in front panel to support 8-channel audio output. USB Ports
Intel B360 Chipset :
2 x USB 3.1 Gen 2 up to 10Gbps port(s) (2 at back panel, teal blue, Type-A)
Intel B360 Chipset :
4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board)
Intel B360 Chipset :
6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board) Special Features
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability
- ASUS DIGI+ VRM: 6 Phase digital power design
ASUS OptiMem
- Optimem (Improved DDR4 stability)
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- PC Cleaner
- File Transfer
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution and MOS Heatsink
- ASUS Fan Xpert 2+
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds) Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 (teal blue)up to 10Gbps
2 x USB 3.1 Gen 1 (blue) up to 5Gbps,
4 x USB 2.0
3 x Audio jack(s) Internal I/O Ports
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s) (19-pin)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA and PCIE 3.0 X2 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
2 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x System panel(s)
1 x Clear CMOS jumper(s)
1 x COM port header Accessories
Users manual
I/O Shield
2 x SATA 6Gb/s cable(s)
2 x M.2 screws
1 x SCD (by region) BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information Manageability
WOL by PME, PXE Support Disc
Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version) Operating System
Windows 10 64-bit Form Factor
ATX Form Factor
12.0 inch x 8.7 inch ( 30.5 cm x 22.1 cm ) Item Dimension (L inchxW inchxH inch)
11 x 13 x 3

Weight
3.00 lb

Warranty Information
3 Years
