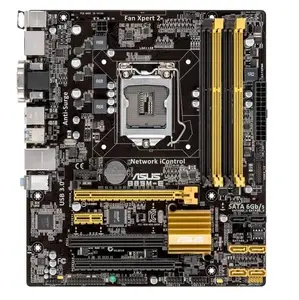

Asus 90MB0F60-M0AAY0 B85M E CSM MOTHERBOARD MINI ATX B85 LGA1150 32GB DDR3 NETWORK ICONTROL SUPERIOR COMP

Specifications

• Mfr Part Number: B85M-E/CSM
• CPU : LGA1150
  • Supports Intel 4th Generation Core i5 / i7 CPU
  • Supports 22nm CPU
  • Supports Intel Turbo Boost Technology 2.0
• Chipset: Intel B85 Express
• Memory: 4x DDR3-1600/1333/1066 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 32GB
• Slots: 1x PCI-Express 3.0 x16 Slot, 1x PCI-Express 2.0 x16 Slot (runs at x4), 1x PCI-Express 2.0 x1 Slot, 1x PCI Slot
• SATA: 4x SATA3 Ports, 2x SATA2 Ports
• Audio: Realtek ALC887-VD2 8-Channel High Definition Audio CODEC
• LAN: Realtek 8111F PCI-Express Gigabit Ethernet Controller
• Ports: 4x USB 3.0 Ports (2 rear, 2 at mid-board), 8x USB 2.0 Ports (4 rear, 4 at mid-board), 1x PS/2 Keyboard Port, 1x PS/2 Mouse Port, 1x VGA Port, 1x DVI Port, 1x HDMI Port, 1x DisplayPort, 1x RJ45 LAN Port, Audio I/O Jacks

• Power Connector: 1x 24pin ATX Power Connector, 1x 4pin ATX 12V Power Connector

• Form Factor: MicroATX, 9.6 x 8.4 inch
