Technical Specifications
XONAR D1 SC PCI EAX5 DS3D GX 2.0 S/PDIF
With the ASUS Xonar D1 PCI soundcard, users can enjoy the same rich gaming audio effects and extensive Dolby Home Theater features as the Xonar DX, and free up PCI express slots for other uses at the same time. This iteration of the Xonar provides fine-tuned audio components that reach a clear 116dB SNR (Signal-to-Noise Ratio), while the built-in DS3D GX revives support for DirectSound HW multi-channel gaming audio and the EAX (Environment Audio Extension) in PC games.

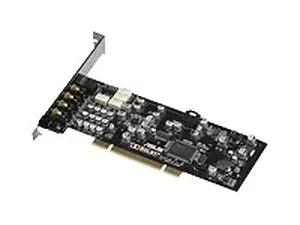

Product Description ASUS Xonar D1 - sound card
Device Type Sound card - low profile
Enclosure Type Plug-in card
Interface Type PCI
Signal Processor ASUS AV100
Sound Output Mode 7.1 channel surround
DAC Data Width 24-bit
Sample Rate 192 kHz (max)
Signal-To-Noise Ratio 116 dB
System Requirements Microsoft Windows XP, Microsoft Windows XP 64-bit Edition, Microsoft Windows XP Media Center Edition 2005, Microsoft Windows Vista, Microsoft Windows Vista (64-bit versions)
General
Device Type Sound card - low profile
Enclosure Type Plug-in card
Interface Type PCI
Processor / Memory
Signal Processor ASUS AV100
Audio Output
Sound Output Mode 7.1 channel surround
DAC Data Width 24-bit
Sample Rate 192 kHz (max)
Signal-To-Noise Ratio 116 dB
Features Karaoke, Dolby Headphone technology, Dolby Virtual Speaker technology, Magic Voice, Smart Volume Normalizer, FlexBass, Xear 3D Virtual Speaker Shifter
Compliant Standards DirectSound, DirectSound3D, EAX 2.0, EAX 1.0, Dolby Digital 5.1, A3D[.0, OpenAL, DirectX, Dolby Digital Live, AC-3 (Dolby Digital), Dolby Pro Logic IIx, DirectSound3D GX 2.0
Audio Modes Record : 24-bit 192 kHz Playback : 24-bit 192 kHz
Expansion / Connectivity
Interfaces[ x audio - line-out - mini-phone 3.5 mm 1 x audio - line-out (side surround) - mini-phone 3.5 mm 1 x audio - line-out (center/subwoofer) - mini-phone 3.5 mm 1 x audio - line-out (back surround) - mini-phone 3.5 mm 1 x audio - line-in/microphone - mini-phone 3.5 mm 1 x audio - SPDIF output/line-in/microphone - TOSLINK 1 x audio - line-in - 4 pin MPC
Compatible Slots 1 x PCI
Miscellaneous
Included Accessories Low-profile bracket
Cables Included Audio (optical) adapter
Software / System Requirements
Software Drivers
