SKU: BEZIT1ZSHQ |  Mfg. Part: 90-MXBEJ0-A0UAYZ  |
 1 Reviews  |     Share

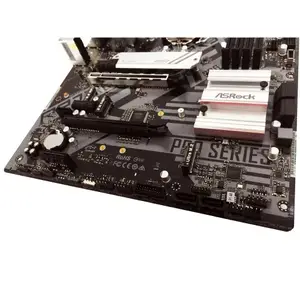

Asrock 90-MXBEJ0-A0UAYZ Z590 Pro4 Intel Z590 LGA 1200 ATX Motherboard w/HDMI, DP, Audio, LAN & USB

Special Order
Ships in 1-2 weeks
Condition: New

$180.34  $243.46
 Free Shipping for this Item

Product Overview

  • Notes:
  • Model: Z590 Pro4
  • P/N: 90-MXBEJ0-A0UAYZ
  • EAN: 4 710483 933899
  • Product Requirements:
  • ATX case
  • Power supply
  • Supported CPU and RAM
  • PCI Express video card
  • Rest of the system

Technical Specifications

  • ASRock Z590 Pro4 Intel Z590 ATX Motherboard
  • General Features:
  • Intel Z590 chipset
  • ATX form factor
  • 14 Phase Dr.MOS Power Design
  • ASRock Graphics Card Holder (Patent Pending)
  • Reinforced Steel Slot (PCIe 4.0 version)
  • Solid Capacitor design
  • Microsoft Windows 10 64-bit support
  • Lead-free components (RoHS compliant)
  • CPU:
  • Supports 10th Gen Intel Core Processors and 11th GenIntel Core Processors (LGA1200)
  • Digi Power design
  • 14 Power Phase design
  • Supports Intel Turbo Boost Max 3.0 Technology
  • Supports Intel K-Series unlocked CPUs
  • Memory:
  • Dual Channel DDR4 Memory Technology
  • 4 x DDR4 DIMM Slots
  • 11th Gen Intel Core Processors support DDR4 non-ECC,un-buffered memory up to 4800+(OC)
  • 10th Gen Intel Core Processors support DDR4 non-ECC,un-buffered memory up to 4666+(OC)
  • Supports ECC UDIMM memory modules (operate in non-ECCmode)
  • Max. capacity of system memory: 128GB
  • Supports Intel Extreme Memory Profile (XMP) 2.0
  • Audio:
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • Supports Surge Protection
  • Nahimic Audio
  • LAN:
  • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  • Dragon RTL8125BG
  • Supports Dragon 2.5G LAN Software
  • Smart Auto Adjust Bandwidth Control
  • Visual User Friendly UI
  • Visual Network Usage Statistics
  • Optimized Default Setting for Game, Browser, and StreamingModes
  • User Customized Priority Control
  • Supports Wake-On-LAN
  • Supports Lightning/ESD Protection
  • Supports Energy Efficient Ethernet 802.3az
  • Supports PXE
  • Expansion Slots:
  • Two (2) PCI Express x16 slots
  • Three (3) PCI Express 3.0 x1 slots
  • One (1) M.2 Socket (Key E) supports type 2230 WiFi/BT PCIeWiFi module and Intel CNVi (Integrated WiFi/BT)
  • Storage:
  • Six (6) SATA3 6.0 Gb/s Connectors
  • One (1) Hyper M.2 Socket (M2_1)
  • One (1) Ultra M.2 Socket (M2_2)
  • One (1) Ultra M.2 Socket (M2_3)
  • RAID:Supports RAID 0, RAID 1, RAID 5 andRAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
  • Rear Panel I/O:
  • One (1) PS/2 Mouse/Keyboard port
  • One (1) HDMI port
  • One (1) DisplayPort 1.4
  • Two (2) USB 3.2 Gen2 ports (10 Gb/s) (ReDriver) (SupportsESD Protection)
  • Two (2) USB 3.2 Gen1 ports (Supports ESD Protection)
  • Two (2) USB 2.0 ports (Supports ESD Protection)
  • One (1) RJ-45 LAN port with LED (ACT/LINK LED and SPEEDLED)
  • HD Audio Jacks: Line in / Front Speaker / Microphone
  • Internal Connectors:
  • One (1) SPI TPM Header
  • One (1) Power LED and Speaker Header
  • Two (2) RGB LED Headers
  • Two (2) Addressable LED Headers
  • One (1) CPU Fan Connector (4-pin)
  • One (1) CPU/Water Pump Fan Connector (4-pin) (Smart FanSpeed Control)
  • Four (1) Chassis/Water Pump Fan Connectors (4-pin) (SmartFan Speed Control)
  • One (1) 24 pin ATX Power Connector
  • One (1) 8 pin 12V Power Connector (Hi-Density PowerConnector)
  • One (1) 4 pin 12V Power Connector (Hi-Density PowerConnector)
  • One (1) Front Panel Audio Connector
  • One (1) Thunderbolt AIC Connector (5-pin) (Supports ASRockThunderbolt 4 AIC Card)
  • Two (2) USB 2.0 Headers (Support 4 USB 2.0 ports)(Supports ESD Protection)
  • Two (2) USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)(ASMedia ASM1074 hub) (Supports ESD Protection)
  • One (1) Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)(Supports ESD Protection)
  • Special Features:ASRock USB 3.2 Gen2
  • - ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20Gb/s)
  • - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
  • ASRock Super Alloy
  • - Premium 50A Power Choke
  • - 50A Dr.MOS
  • - Sapphire Black PCB
  • - High Density Glass Fabric PCB
  • 2.5G LAN
  • ASRock Steel Slot
  • ASRock Full Coverage M.2 Heatsink
  • ASRock Hyper M.2 (PCIe Gen4x4)
  • ASRock POST Status Checker (PSC)
  • ASRock Full Spike Protection (for all USB, Audio, LANPorts)
  • ASRock Live Update & APP Shop
  • Hardware Monitor:Fan Tachometer: CPU,CPU/Water Pump, Chassis/Water Pump Fans
  • Quiet Fan (Auto adjust chassis fan speed by CPU temperature):CPU, CPU/Water Pump, Chassis/Water Pump Fans
  • Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/WaterPump Fans
  • Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM,VCCIN AUX, VCCSA, VCCPLL, VCCIO

Product Details

  • Manufacturer:
  • Model Number:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • ASRock
  • 90-MXBEJ0-A0UAYZ
  • New
  • 4 lbs
  • 15 X 5 X 5
  • Feb 19, 2026
  • Sep 03, 2021
Product Identifiers: Brand: Asrock • Part #: 90-MXBEJ0-A0UAYZ • Category: Motherboards

Asrock 90-MXBEJ0-A0UAYZ Z590 Pro4 Intel Z590 LGA 1200 ATX Motherboard w/HDMI, DP, Audio, LAN & USB

Reviews for Asrock 90-MXBEJ0-A0UAYZ

$180.34
