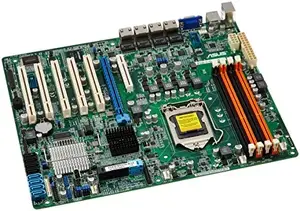

Asus 90-MSVDM5-G0UAY0YZ Motherboard P8B-C/SAS/4L Intel Core i3 Xeon E3 C204 LGA1155 DDR3 SATA PCI Express Retail

Processor/System Bus
1 x Socket LGA1155
Intel Xeon E3-1200 Processor Family
Intel Core i3-2100 Processor Family
Intel Core G8X0 Processor Family
Intel Core G6X0 Processor Family Processor Core Logic
Intel C204 Chipset Memory
Total Slots: 4 (2 Channels)
Capacity: Maximum up to 32GB UDIMM
Memory Type: DDR3 1333/1066 UDIMM with ECC Expansion Slots
Total Slots: 7
5 x PCI 32Bit/33MHz
PCI-E x16
PCI-E x8 (x4 Link) Form Factor
12 x 9.6 Inch Asus Features
Fan Speed Control
Rack Ready (Rack and Pedestal Dual Use) Storage
SATA Controller:
Intel C204
2 x SATA3 6Gb/s Ports
4 x SATA2 3 Gb/s Ports
Intel Rapid Storage Technology (RST) (For Windows Only)
(Supports Software RAID 0/1/10)
SAS Controller:
LSI 2008 8Port SAS Controller Networking
4 x Intel 82574L Graphic
XGI Z9s with 64MB VRAM On Board I/O
1 x TPM header
1 x PSU Power Connector , 24-pin ATX power connector + 8-pin ATX 12V power connector
1 x USB connector
2 x USB pin header , Up to 4 Devices
5 x Fan Header , 4pin
1 x Chassis Intruder
2 x Serial Port Header Back I/O Ports
2 X External USB Port
1 X VGA Port
4 X RJ-45
1 X PS/2 KB/Mouse Environment
Operation temperature: 10 35
Non operation temperature: -40 70
Non operation humidity: 20% 90% ( Non condensing) Accessories
Gift Box Pack:
1 x Users Guide
1 x Support CD
1 x I/O Shield
4 x SATA 3G Cable(s)
2 x SATA 6G Cable(s)
1 x Plate for LGA1155
Bulk Pack :
1 x Users Guide
1 x Support CD
1 x I/O Shield
1 x Plate for LGA1155 Monitoring
CPU Temperature
Fan RPM Item Dimension (L"xW"xH")
13 x 10.75 x 2.25

Weight
3.54 lb

Warranty
Asus 3 Years Limited
