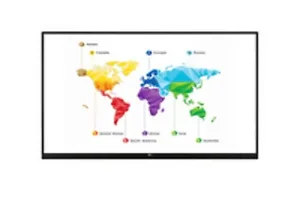

86TR3BF-B - Lg Electronics 86IN LCD TCH 38X21 TAA IR TCH AND SPK 3Y

Panel
Screen Size
86
Panel Technology
IPS
Back Light Type
RGB, Direct
Aspect Ratio
16 : 9
Native Resolution
3,840 x 2,160 (UHD)
Brightness(Typ., cd/m², w/ Protection Glass)
330
Contrast Ratio
1,100:1
Viewing Angle (H x V)
178 x 178
Response Time
8ms(G to G)
Life Time (Typ.)
30,000 Hrs (Min.)
Operation Hours
16Hr
Orientation
Landscape
Connectivity
(Input) Video / Audio
HDMI (3), RGB / Audio In
(Input) External Control
RS232C In, RJ45
(Input) USB
USB 2.0 (3, Front : 2ea, Bottom side: 1ea Only for software update), USB 3.0 (3), Touch Out(USB2.0,B Type) (2)
(Output) Video / Audio
HDMI (1), Optical Output / Audio Out
Mechanical Specification
Bezel Color
Black
Bezel Width(Off Bezel)
Top/Right/Left:17.7mm, Bottom:45.7mm
Handle
Yes
VESA^TM Standard Mount Interface
800 x 600
Environment Conditions
Operation Temperature
0^oC to 40^oC
Operation Humidity
10 % to 80 %
Power
Power Supply
100-240V-, 50/60Hz
Power Type
Built-In Power
Power Consumption (Typ. / Max.)
400W / 450W
Sound
Speaker
Built in 24W (12W + 12W)
Standard (Certification)
Safety
UL / cUL / CB
EMC
FCC Class "A" / CE
ErP / Energy Star
Yes / No
Media Player Compatibility
OPS Type Compatible
Yes
Accessory
Basic
Power Cord 3 M x1, USB Cable (Type A-Type B) 5 M x1, HDMI Cable 3 M x1, Writing Pen x2pcs, User Manual, QSG, Carton Box, Remote Control
Special Feature
Embedded Writing Software
Yes
Touch Specifications
Touch type
IR
Available object size for touch
Diameter 3 mm up
Response Time
60ms down (Android) / 100ms down (Windows)
Accuracy
1.5mm
Interface
USB 2.0
Protection Glass Thickness
4T (Anti-Glare)
Protection Glass Transmission
87%
Operating System Support
Windows 7/8/10/WindowsXP/Linux/Mac/Android (WindowsXP/Linux/Mac Support one point touch)
Multi touch point
Max 20 Points / Max 10 Writing
Item Dimension (L"xW"xH")
88 x 60 x 12
Weight
456.00 LB
Warranty Information
3 Year Limited
