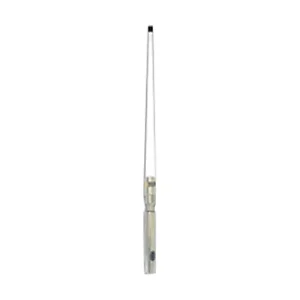

869-CW-S - Digital Antenna Digital 869CW-S 8ft Global Cel With Male Ferrule

Digital 869CW-S 8' Global Cell

With Male Ferrule

• Color: White
• Powerful brass radiators
• Soldered connections
• Power directing ferrite choke bead
• High gloss urethane finish
• 316 stainless steel ferrule
• 9dB gain
• Stainless steel double female ferrule for mounting 1"-14 threaded base
• Highest quality type N female
• Cable not included - Use our PowerMax™ low loss antenna cable
• Omni-directional radiation pattern
• Bandwidth VSWR:< 1.5:1 = 824 to 960 and 1710 to 2170 MHz
• 50 Ohm impedance
• Maximum input power of 250 Watts
• Dimensions: 30"L x 1" tapered OD
• White, UV stable polyurethane coating exterior finish
• Wind rating of 125 mph
• 1"-14 threaded double female ferrule installation

Digital Antenna's global marine cellular antennas are the first ALL BAND marine cellular antennas and are designed and manufactured for all cellular systems, including third generation (3G) and WCDMA technology. With a powerful 9dB gain and professional marine grade construction, these 8' omni-directional cellular antennas improve signals on all cellular bands (850, 900, 1800, 1900 and 2100 MHz) and deliver high performance that will last for years. Each antenna is designed for easy connection to your cell phone or amplifier. For maximum cellular range up to 50+ miles, use with Digital Antenna's PowerLogic™ North American or Euro/Asian cellular amplifiers. All of our antennas are made in the USA, assembled, tested and tuned by hand for maximum performance, quality and durability.

The Digital 869CW-S 8ft Global Cel With Male Ferrule is an omni-directional marine cellular antenna designed for IT and business applications requiring reliable cellular connectivity in marine environments. This antenna supports all cellular systems, including 3G and WCDMA technologies, operating across frequencies from 824 to 960 MHz and 1710 to 2170 MHz. It features a 9dB gain to enhance cellular signals across 850, 900, 1800, 1900, and 2100 MHz bands. Constructed with brass radiators, soldered connections, and a power directing ferrite choke bead, the 869-CW-S is built for durability with a high gloss urethane finish and a 316 stainless steel ferrule. Installation is facilitated by a 1"-14 threaded double female ferrule. This unit is suitable for integration into marine communication systems where robust, all-band cellular signal improvement is necessary. Cable is not included and must be sourced separately.
