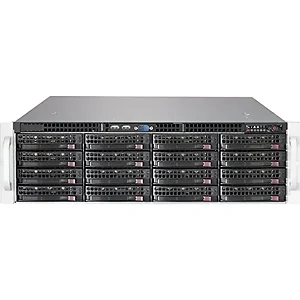

836BE2C-R1K03JBOD - Supermicro CSE-836BE2C-R1K03JBOD 3U JBOD 16x3.5HS SAS minuSAS IPMI 1000W BK

Form Factor
3U chassis Processor Support
N/A Drive Bays
JBOD Chassis : Up to 16 x 3.5 inch hot-swap HDD bays for JBOD solution Backplane
BPN-SAS3-836EL2 (SAS3 12Gb/s dual Expander backplane with 16 SAS3 3.5 inch drive slots connected through 8 mini-SAS3 HD cable connectors) Front Panel
Buttons :
Power On/Off button
System Reset Button
Unit Identification (UID) button
LEDs : 1 Network Activity LEDs Fans
3x 8cm hot-swap redundant PWM cooling fans
2x 8cm hot-swap exhaust fans and air shroud Operating Environment (System)
Operating Temperature Range : 5^oC to 35^oC (41^oF to 95^oF)
Non-Operating Temperature Range : -40^oC to 60^oC (-40^oF to 140^oF)
Operating Relative Humidity Range : 8 percent to 90 percent (non-condensing)
Non-Operating Relative Humidity Range : 5 percent 95 percent (non-condensing) Power Supply with Power Distributor
800/1000W Redundant Titanium Level (96 percent) Single Output Power Supplies
Input : 100-127Vac / 50-60Hz 200-240Vac / 50-60Hz
+12V : Max: 66.7A and Min. 0A (100-127Vac), Max: 83A Min. 0A (200-240Vac)
5V SB : Max: 4A, Min: 0A Power Supply Safety / EMC
USA - UL listed, FCC
Canada - CUL listed
Germany - TUV Certified
Europe/CE Mark
EN 60950/IEC 60950-Compliant Item Dimension (L inchxW inchxH inch)
N/A

Weight
80.00lb

Warranty Information
1 year
