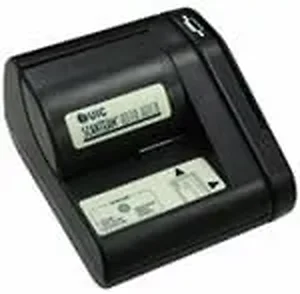

Uniform Industrial 8310-50KR CHECK READER, NON-IBM4683 INTERFACE, BLACK COLOR, NO AUX, NO SCANNER PORT, NO MS

ELECTRICAL

• Power Requirement: Regulated +SVDC?10%, 100mV ripple max, or Regulated or unregulated + 7 to + 13.5 VDC, SOOmV ripple max
• Power Consumption: With motor on: 385mA (typical average) With motor off: 125mA (typical)

INTERFACES

• PC, XT, AT, PS/2 keyboard wedge
• Serial RS-232 (Supports RTS/CTS hardware flow control)
• Wand Emulation

MECHANICAL

• Body Material: PC+ABS
• Dimensions: 87.1H x 104W x 1460 mm
• Weight: 567g
• Card Handling Method: Manual swipe

ENVIROMENTAL

• Operating Temperature: 0°C to +50?
• Storage Temperature: -18? to +60?
• Humidity: 95% max, non-condensing
• ESD Protection: 8KV discharge w/out degradation in performance 15KV top surface / 10KV bottom surface discharge without permanent damage

AGENCY APPROVAL

• FCC class A, CE: complies with EMC 89/93/EEC and LVD 73/23/EEC

PERFORMANCE

• Check Reading: Check Read/Decode/Transmit Time: 2 seconds with 99% first pass good rate,99.9% second pass good read rate.
• MICR Fonts Supported: E13-B and CMC-7, auto discrimination

DATA FORMATS

• MICR Output Formats: Every ST8310 contains a user selectable table of common MICR data output fomats.
• Data Editor: The output data can be uniquely edited by the ST8310 data editor to add or delete characters, including prefix and suffix characters
• MICR Exception Tables: The parsing rules for non-standard?d MICR line checks can be added in the field via programming checks, bar code menu, clone memory transfer from another ST8310, and host download.
• Options: Integrated dual or triple track magnetic stripe reader
• Accessories: Power adapter, Host interface cables, MICR head cleaning checks,MICR programming checks,PC Windows based programming utility, Quick*Load™

ACCESSORIES

• Power adapter, Host interface cables, MICR head cleaning checks,MICR programming checks,PC Windows based programming utility, Quick*Load&trade
