81 502 - Barton Marine Triple Rope Clutch 550kg SWL | Aztek Computers
29+Years
SKU: EWIL8T4B8B |  Mfg. Part: 81 502  | UPC: 5035088815029  |  0 Reviews  |     Share

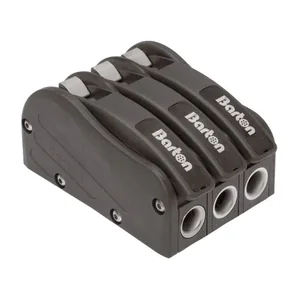

81 502 - Barton Marine Triple Rope Clutch 550kg SWL

11 Available
Condition: New

$207.55  $280.19
Free Shipping for this Item

Product Overview

The Barton Marine Triple Rope Clutch is expertly designed for both cruising and racing yachts, ensuring superior performance under challenging marine conditions. Constructed from modern lightweight materials, this clutch is durable and resistant to harsh environments.

Its unique clutch mechanism allows for seamless line adjustments even when under load, providing reliability with minimal effort. The precision operation of the handle ensures ease of use, even in cold and wet conditions. A user-friendly feature includes a removable insert on the handle to easily customize functionality indicators.

Expert Overview

The Barton Marine Triple Rope Clutch, part number 81 502, is engineered for marine applications on both cruising and racing yachts. This component is designed to manage and secure ropes up to 12mm in diameter, with a Safe Working Load (SWL) of 550kg. Constructed from high-grade plastics and marine-grade aluminum, it offers durability and resistance to harsh marine environments. The clutch mechanism facilitates line adjustments even when under load, aiming to provide reliable rope management with minimal effort. Its design includes a positive handle lock and a removable insert for customizing functionality indicators. This product addresses the need for secure and adjustable rope handling on vessels, suitable for environments requiring robust and serviceable hardware.

Technical Specifications

  • Max Rope Diameter: Up to 12mm (0.47 inches)
  • Fastening: 6mm x 6 (0.24 x 6 inches)
  • SWL: 550kg (1,212.54lbs)
  • Constructed from high-grade plastics for strength and impact resistance
  • Marine grade aluminum cams and bases with Spectro anodized finish
  • Positive handle lock in closed position
  • Removable top insert for customization of indicators
  • High-grade extruded aluminum with tempered tooth design for grip
  • Stainless steel rope fairleads to prevent wear on clutch and lines
  • Bolt together construction facilitates easy servicing and part replacement

Product Details

  • Manufacturer:
  • Model Number:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Country of Origin:
  • Barton Marine
  • 81 502
  • 5035088815029
  • New
  • 2.05 lbs
  • 6 X 3 X 4
  • Sep 10, 2026
  • Dec 16, 2018
  • UNITED KINGDOM
Product Identifiers: Brand: Barton Marine • Part #: 81 502 • UPC: 5035088815029

Frequently Asked Questions

What is the maximum rope diameter this clutch can accommodate?

The Barton Marine Triple Rope Clutch is designed to accommodate ropes with a maximum diameter of up to 12mm (0.47 inches).

What is the Safe Working Load (SWL) for this rope clutch?

This rope clutch has a Safe Working Load (SWL) of 550kg (1,212.54lbs).

What materials are used in the construction of this clutch?

The clutch is constructed from high-grade plastics for strength and impact resistance, marine-grade aluminum cams and bases with a Spectro anodized finish, and high-grade extruded aluminum with a tempered tooth design for grip. It also features stainless steel rope fairleads.

Can the clutch be serviced or repaired easily?

Yes, its bolt-together construction is designed to facilitate easy servicing and part replacement.
