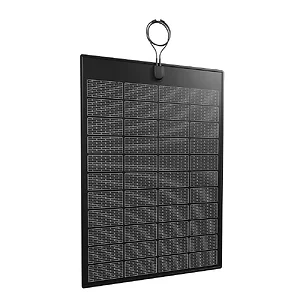

Xantrex 784-9115-01 115W Flexible Solar Panel

115W Flexible Solar Panel

This Xantrex flexible solar panel utilizes innovative mesh grid technology, ensuring exceptional durability and performance. With approximately 2000 contact points per cell, the panel maintains efficiency even while flexing up to 180 degrees. It has undergone rigorous environmental and lifecycle testing, demonstrating durability that exceeds standard flexible panels.

The panel features a highly protective ETFE (Ethylene-Tetra-Fluoro-Ethylene) top layer that offers superior corrosion, stain, and weather resistance, facilitating excellent light transmittance and durability across a broad temperature range.

Features:

• Premium peel-and-stick design for easy installation
• Up to 20% more energy harvesting in low-light or shaded conditions
• Durable construction, tested for extreme environments

Applications:

• Recreational vehicles
• Heavy-duty trucks
• Marine use
• Work trucks
• Specialty vehicles

Specifications:

Electrical Specifications:

• Maximum Power-Pmax (W) at STC*: 115
• Maximum Power Voltage-Vmp (V): 22.1
• Maximum Power Current-Imp (A): 5.2
• Open Circuit Voltage-Voc (V): 27.4
• Short-Circuit Current-Isc (A): 5.6
• Maximum System Voltage (V): 600

Mechanical Specifications:

• Cell Type: Mono-Crystalline PERC
• Top-Layer: ETFE
• Junction Box: IP67 Rated
• Connector: MC4 type
• Number of Cells: 42 (6 x 7)
• Weight: 6.0 lb (2.7 kg)
• Dimensions (L x W x D): 37.5 x 28.4 x 0.08 in (953 x 722 x 2 mm)

Temperature Specifications:

• Operating Temperature: -40–85 degrees C
• Temperature Coefficients of Pmax: -0.39%/degrees C
• Temperature Coefficients of Voc: -0.30%/degrees C
• Temperature Coefficients of Isc: +0.06%/degrees C
