Technical Specifications
_7700 PROJ 5000LUMEN FULLHD DLP 19X10 225_

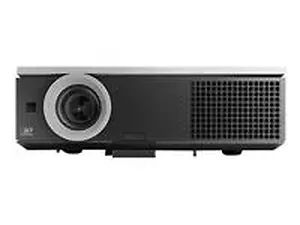

Dell 7700 - DLP projector - 5000 ANSI lumens - 1920 x 1080 - widescreen - High Definition 1080p - LAN
Amaze your audience with Full 1080p HD. The Dell 7700FullHD projector can deliver stunning, ultra-bright multimedia presentations in almost any lighting condition.
MAIN SPECIFICATIONS
Product Description Dell 7700 - DLP projector
Device Type DLP projector - High Definition 1080p
Built-in Devices Stereo speakers
Dimensions (WxDxH) 17 in x 11.4 in x 5.3 in
Weight 16.1 lbs
Image Brightness 5000 ANSI lumens
Image Contrast Ratio 2500:1 / 10000:1 (dynamic)
Resolution 1920 x 1080
Native Aspect Ratio Widescreen
Color Support 1.07 billion colors
Lamp Type 400 Watt
Lamp Life Cycle 1500 hour(s) / 2000 hour(s) (economic mode)
Video Input RGB, S-Video, composite video, component video ( NTSC, PAL-B/G, PAL-N, PAL-M, PAL-I, NTSC 4.43, PAL 60, PAL-D, SECAM L, PAL-H, SECAM K1, SECAM D/K, SECAM B/G, M-NTSC ) , LAN
Digital Video Standard High-Definition Multimedia Interface (HDMI)
Video Modes 480p, 720p, 1080i, 1080p, 480i, 576i, 576p
Audio Output Speaker(s) - integrated
Sound Output Mode 5 Watt
Input Device Remote control
Power AC 120/230 V ( 50/60 Hz )
Power Consumption Operational 525 Watt
EXTENDED SPECIFICATIONS
General
Device Type DLP projector - High Definition 1080p
Built-in Devices Stereo speakers
Width 17 in
Depth 11.4 in
Height 5.3 in
Weight 16.1 lbs
Projector / Panel
Image Brightness 5000 ANSI lumens
Image Contrast Ratio 2500:1 / 10000:1 (dynamic)
Image Size 20.9 in - 293 in
Projection Distance 3.3 ft - 39 ft
Throw Ratio 1.85 - 2.22:1
Uniformity 85 %
Resolution Full HD - 1920 x 1080
Native Aspect Ratio Widescreen
Color Support 1.07 billion colors
Lamp Type 400 Watt
Lamp Life Cycle 1500 hour(s) / 2000 hour(s) (economic mode)
Features High-bandwidth Digital Content Protection System (HDCP), BrilliantColor
Projector Lens System
Focus Type Manual
Lens Aperture F/2.6-2.9
Zoom Type Manual
Zoom Factor 1.2x
Keystone Correction Direction Vertical
Vertical Keystone Correction -30 / +30
Video Input
Analog Video Format NTSC, PAL-B/G, PAL-N, PAL-M, PAL-I, NTSC 4.43, PAL 60, PAL-D, SECAM L, PAL-H, SECAM K1, SECAM D/K, SECAM B/G, M-NTSC
Analog Video Signal RGB, S-Video, composite video, component video
Digital Video Standard High-Definition Multimedia Interface (HDMI)
Video Modes 480p, 720p, 1080i, 1080p, 480i, 576i, 576p
LAN and Wireless Image Transferring Protocols Wired LAN
Audio Output
Type Speaker(s) - integrated
Output Power / Channel 5 Watt
Input Device
Type Remote control - external - wireless
Expansion / Connectivity
Interfaces 1 x composite video input - RCA 1 x S-video input - 4 pin mini-DIN 2 x VGA / component video input - 15 pin D-Sub (DB-15) 1 x audio line-in - mini-phone stereo 3.5 mm 1 x VGA output - 15 pin D-Sub (DB-15) 2 x HDMI input - 19 pin HDMI Type A 1 x component video input - RCA phono x 3 1 x serial RS-232 - 9 pin D-Sub (DB-9) ( management ) 1 x network - RJ-45 1 x audio line-out - mini-phone stereo 3.5 mm 1 x management - 4 pin mini-USB Type B 2 x USB - 4 pin USB Type A 1 x USB - 4 pin USB Type B
Miscellaneous
Cables Included 1 x VGA cable 1 x USB cable
Security Features Security lock slot (cable lock sold separately), password protection
Power
Voltage Required AC 120/230 V ( 50/60 Hz )
Power Consumption Operational 525 Watt
Power Consumption Operational ( Standby ) 0.5 Watt
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 95 °F
Sound Emission 39 dBA
Sound Emission (Economic Mode) 36 dBA
