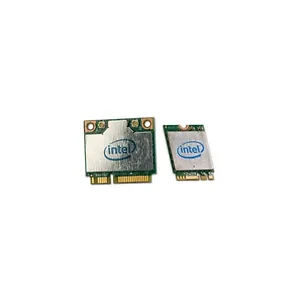

Intel 7260.HMWANWB.R?FOO Dual Band Wireless-N 7260 - Network adapter - PCI Express Half Mini Card - 802.11b, 802.11a, 80

Specifications

• Mfr Part Number: 7260.HMWANWB.R
• Host Interface: PCI Express, USB
• Wireless Transmission Speed: 300 Mbps
• ISM Maximum Frequency: 2.40 GHz
• UNII Maximum Frequency: 5 GHz
• Wi-Fi Alliance: Wi-Fi Certified a/b/g, Wi-Fi Certified, WMM, WPA, WPA2, and WPS, WPS 2.0, Protected Management Frames, Wi-Fi Direct for peer to peer device connections
• IEEE WLAN Standard: IEEE 802.11agn
• Architecture: Infrastructure and SoftAP; Supports simultaneous Client and SoftAP modes
• Roaming: Supports seamless roaming between respective access points (802.11b, 802.11g, 802.11a/b/g, 802.11a/b/g/n)
• Bluetooth: Bluetooth 4.0
• Diversity: Suported
• Radio On/Off Control: Supported in both hardware and software
• LED Output: On/Off
• Operating Systems: Microsoft Windows 7, Microsoft Windows 8, Linux (most features not available on Linux)
• Security:
  • Authentication: WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA
  • Authentication Protocols: PAP, CHAP, TLS, GTC, MS-CHAP, MS-CHAPv2
  • Encryption: 64-bit and 128-bit WEP, AES-CCMP, TKIP
  • Wi-Fi Direct Encryption and Authentication: WPA2, AES-CCMP
  • Product Safety: UL, C-UL, CB (IEC 60950-1)
  • Management Frame Protection: 802.11w (WFA-Protected Management Frames)
• Form Factor: PCIe Half Mini Card
• Dimensions (WxDxH): 30.0 x 2.4 x 26.8 mm Max (Top Side) / 1.35 mm Max (Bottom Side) Single Sided
• Weight: 3.4 g
